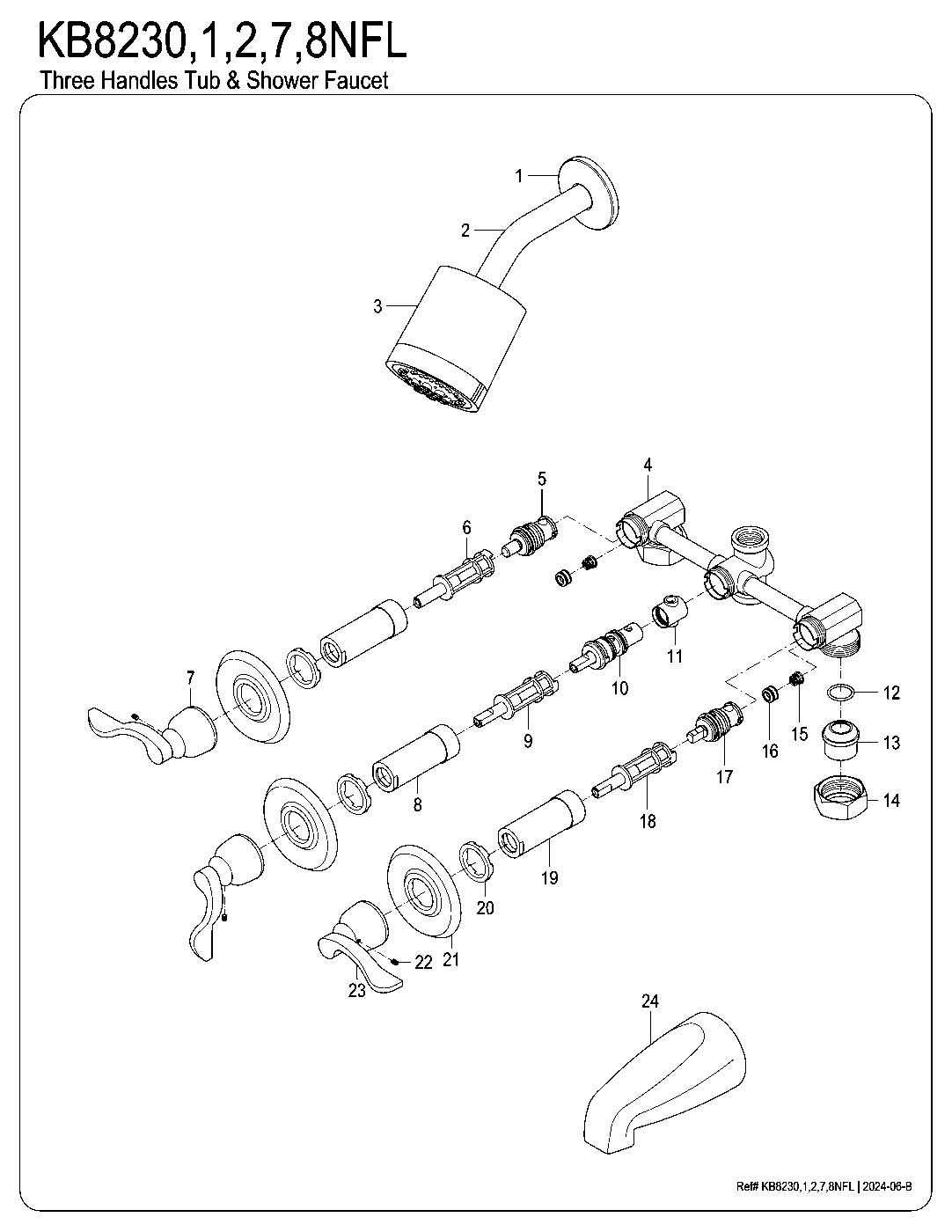

NuWave French KB8230NFL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramNuWave French KB8230NFL parts questions
Which Kingston Brass models does this NuWave French parts diagram cover?
KB8230NFL, KB8231NFL, KB8232NFL, KB8237NFL, KB8238NFL. They are the same three-handle 5-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB8230NFL come in?
Matte Black (KB8230NFL), Polished Chrome (KB8231NFL), Polished Brass (KB8232NFL), Brushed Brass (KB8237NFL), Brushed Nickel (KB8238NFL).
What replacement handles fit the KB8230NFL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB823xNFL diagram?
Kingston numbers the parts on this diagram (18 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
NuWave French KB823xNFL in every finish
NuWave French KB8230NFL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Matte Black$383.47Matte Black
NuWave French KB8231NFL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Chrome$172.22Polished Chrome
NuWave French KB8232NFL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Polished Brass$233.97Polished Brass
NuWave French KB8237NFL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Brushed Brass$383.47Brushed Brass
NuWave French KB8238NFL Three-Handle 5-Hole Wall Mount Tub and Shower Faucet, Brushed Nickel$217.72Brushed Nickel
