Kingston Brass NuvoFusion KB6690NDL parts

Single-Handle 3-Hole Wall Mount Tub and Shower Faucet. One parts diagram covers all 6 finishes of this model.

Model numbers: KB6690NDL KB6691NDL KB6692NDL KB6695NDL KB6697NDL KB6698NDL

Open the diagram Kingston’s PDF

Replacement handles for the KB669xNDL

Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.

NuvoFusion KB6690NDL exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

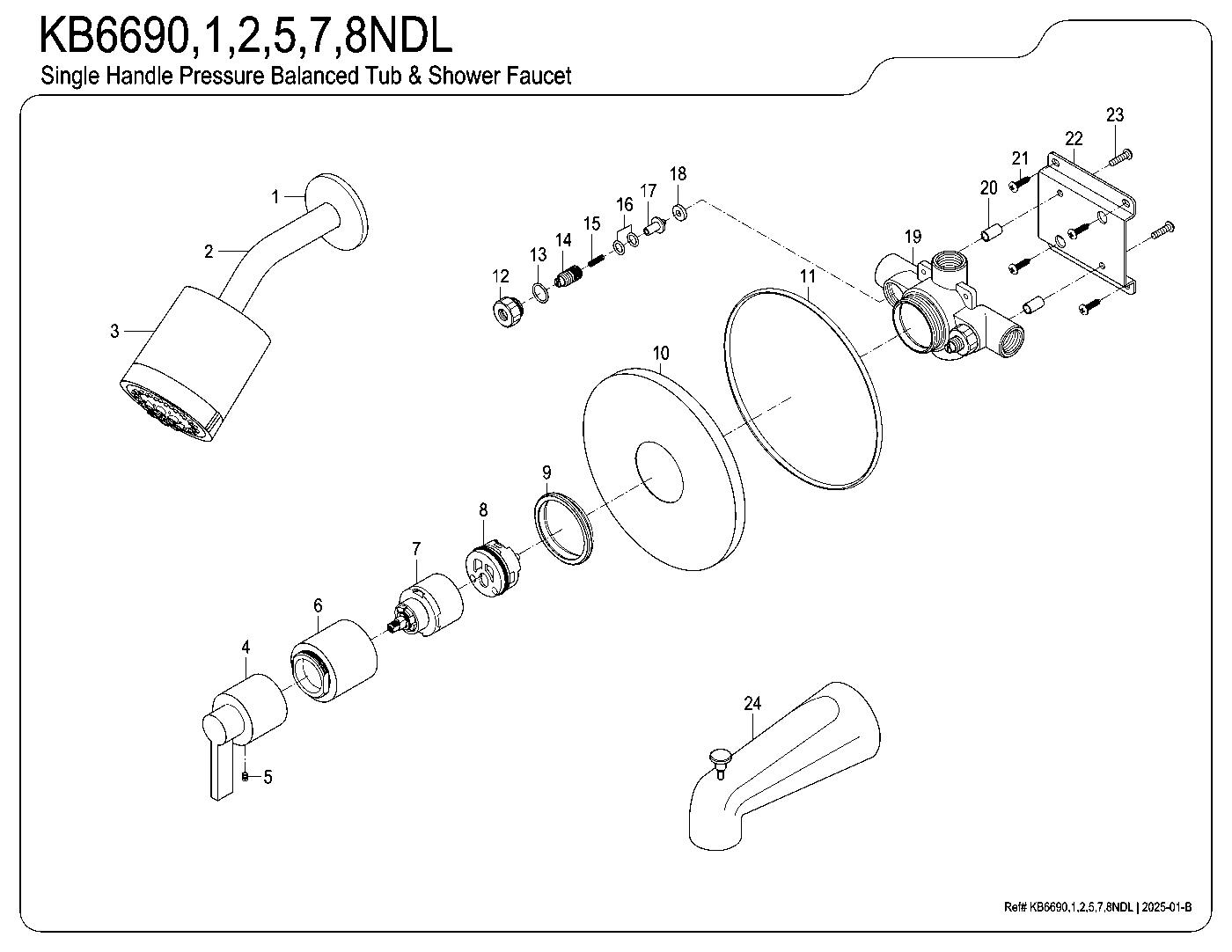

NuvoFusion KB6690NDL exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

NuvoFusion KB6690NDL parts questions

Which Kingston Brass models does this NuvoFusion parts diagram cover?

KB6690NDL, KB6691NDL, KB6692NDL, KB6695NDL, KB6697NDL, KB6698NDL. They are the same single-handle 3-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KB6690NDL come in?

Matte Black (KB6690NDL), Polished Chrome (KB6691NDL), Polished Brass (KB6692NDL), Oil Rubbed Bronze (KB6695NDL), Brushed Brass (KB6697NDL), Brushed Nickel (KB6698NDL).

What replacement handles fit the KB6690NDL?

Kingston's handle numbers follow the faucet model. We list 6 matching handles in every finish we carry.

How do I order a part from the KB669xNDL diagram?

Kingston numbers the parts on this diagram (22 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
