Kingston Brass Manhattan KB6630CML parts

Single-Handle 3-Hole Wall Mount Tub and Shower Faucet. One parts diagram covers all 6 finishes of this model.

Model numbers: KB6630CML KB6631CML KB6632CML KB6635CML KB6637CML KB6638CML

Open the diagram Kingston’s PDF

Replacement handles for the KB663xCML

Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.

Polished Chrome

KBH6631CML
KBH6631CML Metal Lever Handle, Polished Chrome
$29.22

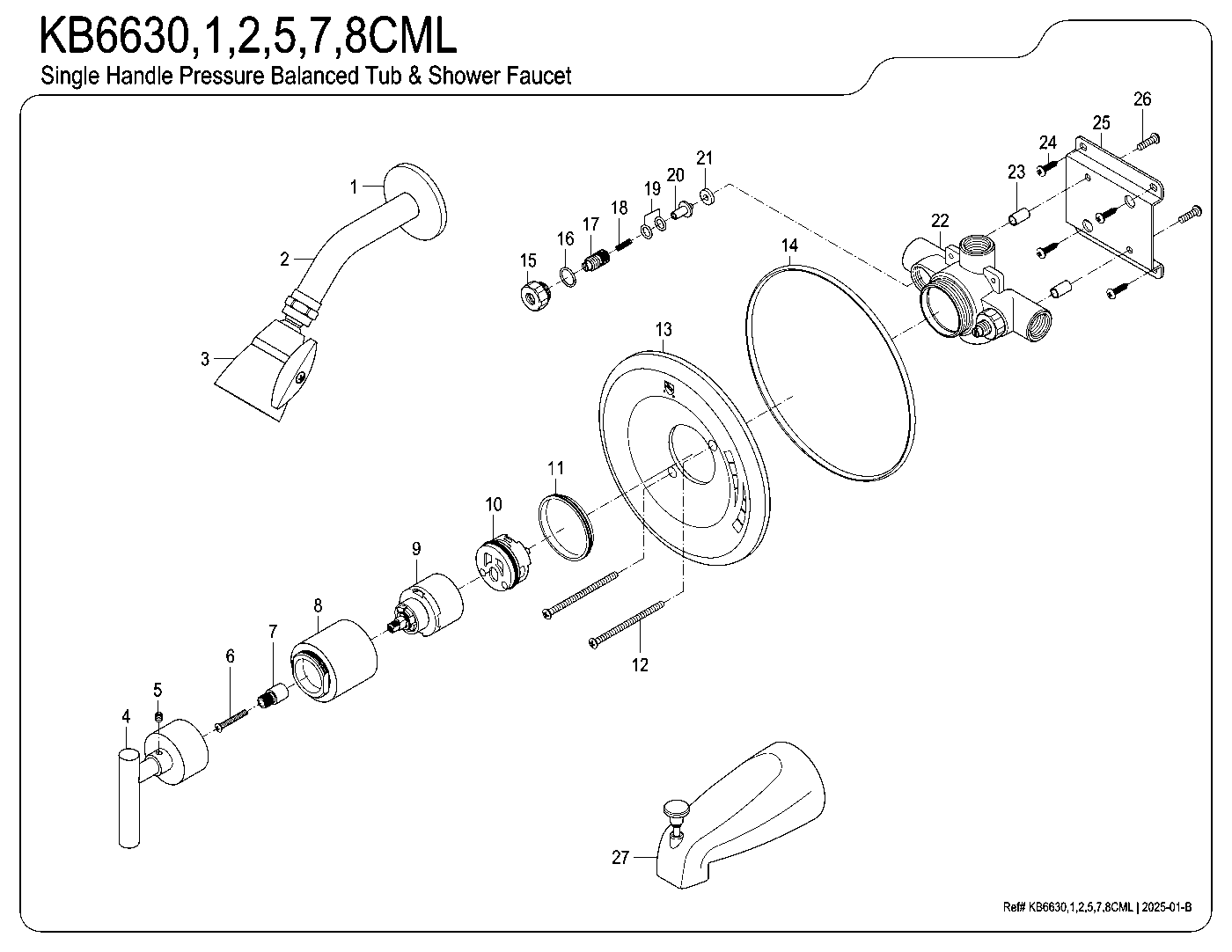

Manhattan KB6630CML exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Manhattan KB6630CML exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

Manhattan KB6630CML parts questions

Which Kingston Brass models does this Manhattan parts diagram cover?

KB6630CML, KB6631CML, KB6632CML, KB6635CML, KB6637CML, KB6638CML. They are the same single-handle 3-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KB6630CML come in?

Matte Black (KB6630CML), Polished Chrome (KB6631CML), Polished Brass (KB6632CML), Oil Rubbed Bronze (KB6635CML), Brushed Brass (KB6637CML), Brushed Nickel (KB6638CML).

What replacement handles fit the KB6630CML?

Kingston's handle numbers follow the faucet model. We list 1 matching handles in every finish we carry.

How do I order a part from the KB663xCML diagram?

Kingston numbers the parts on this diagram (23 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
