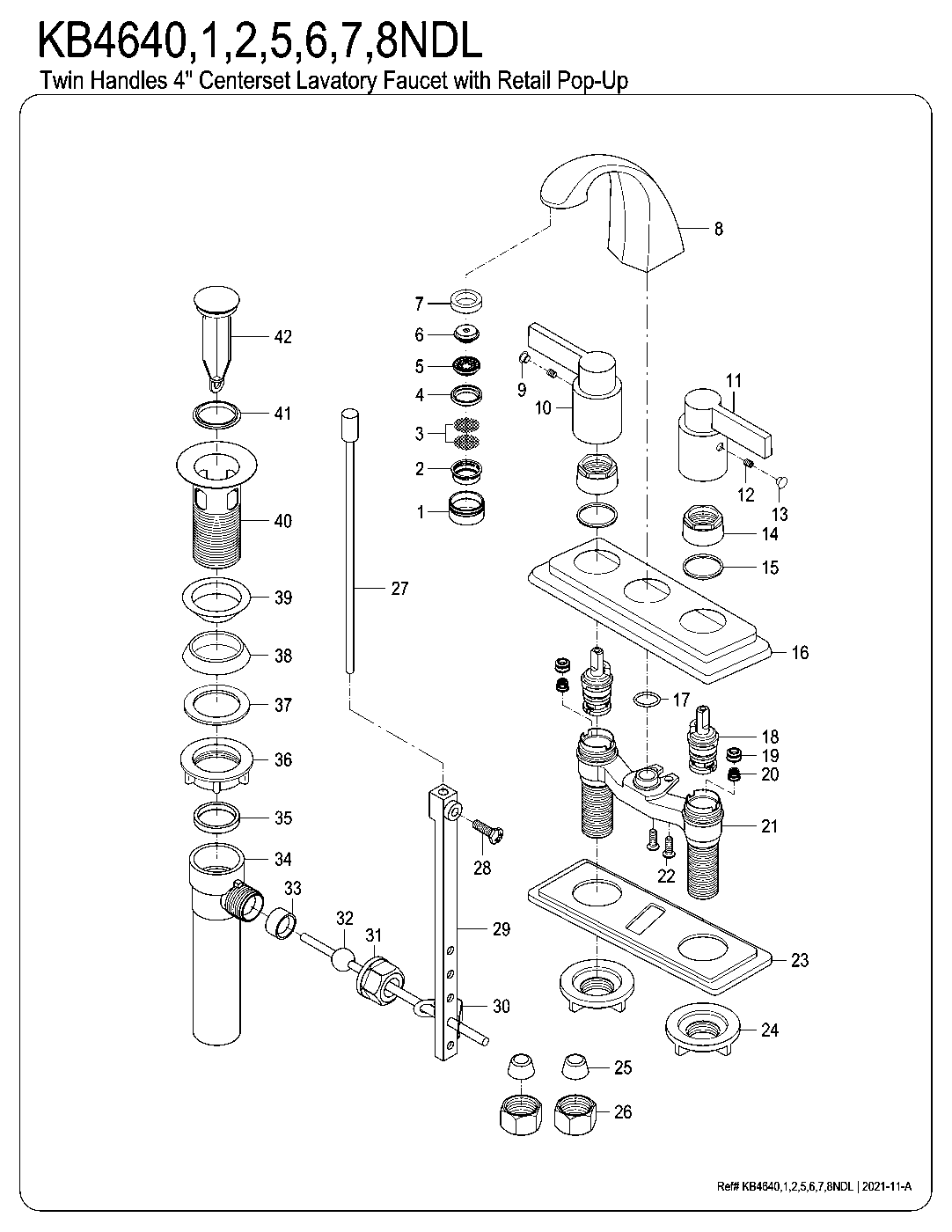

NuvoFusion KB4640NDL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramNuvoFusion KB4640NDL parts questions
Which Kingston Brass models does this NuvoFusion parts diagram cover?
KB4640NDL, KB4641NDL, KB4642NDL, KB4646NDL, KB4647NDL, KB4648NDL. They are the same two-handle 3-hole deck mount 4" centerset bathroom faucet with plastic pop-up in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB4640NDL come in?
Matte Black (KB4640NDL), Polished Chrome (KB4641NDL), Polished Brass (KB4642NDL), Polished Nickel (KB4646NDL), Brushed Brass (KB4647NDL), Brushed Nickel (KB4648NDL).
What replacement handles fit the KB4640NDL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB464xNDL diagram?
Kingston numbers the parts on this diagram (39 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
NuvoFusion KB464xNDL in every finish
NuvoFusion KB4640NDL Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Plastic Pop-Up, Matte Black$194.97Matte Black
NuvoFusion KB4641NDL Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Plastic Pop-Up, Polished Chrome$152.72Polished Chrome
NuvoFusion KB4642NDL Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Plastic Pop-Up, Polished Brass$178.72Polished Brass
NuvoFusion KB4646NDL Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Plastic Pop-Up, Polished Nickel$194.97Polished Nickel
NuvoFusion KB4647NDL Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Plastic Pop-Up, Brushed Brass$194.97Brushed Brass
NuvoFusion KB4648NDL Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Plastic Pop-Up, Brushed Nickel$178.72Brushed Nickel
