Kingston Brass Restoration KB3630PL parts

Single-Handle 3-Hole Wall Mount Tub and Shower Faucet. One parts diagram covers all 8 finishes of this model.

Model numbers: KB3630PL KB3631PL KB3632PL KB3633PL KB3635PL KB3636PL KB3637PL KB3638PL

Open the diagram Kingston’s PDF

Replacement handles for the KB363xPL

Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.

Restoration KB3630PL exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

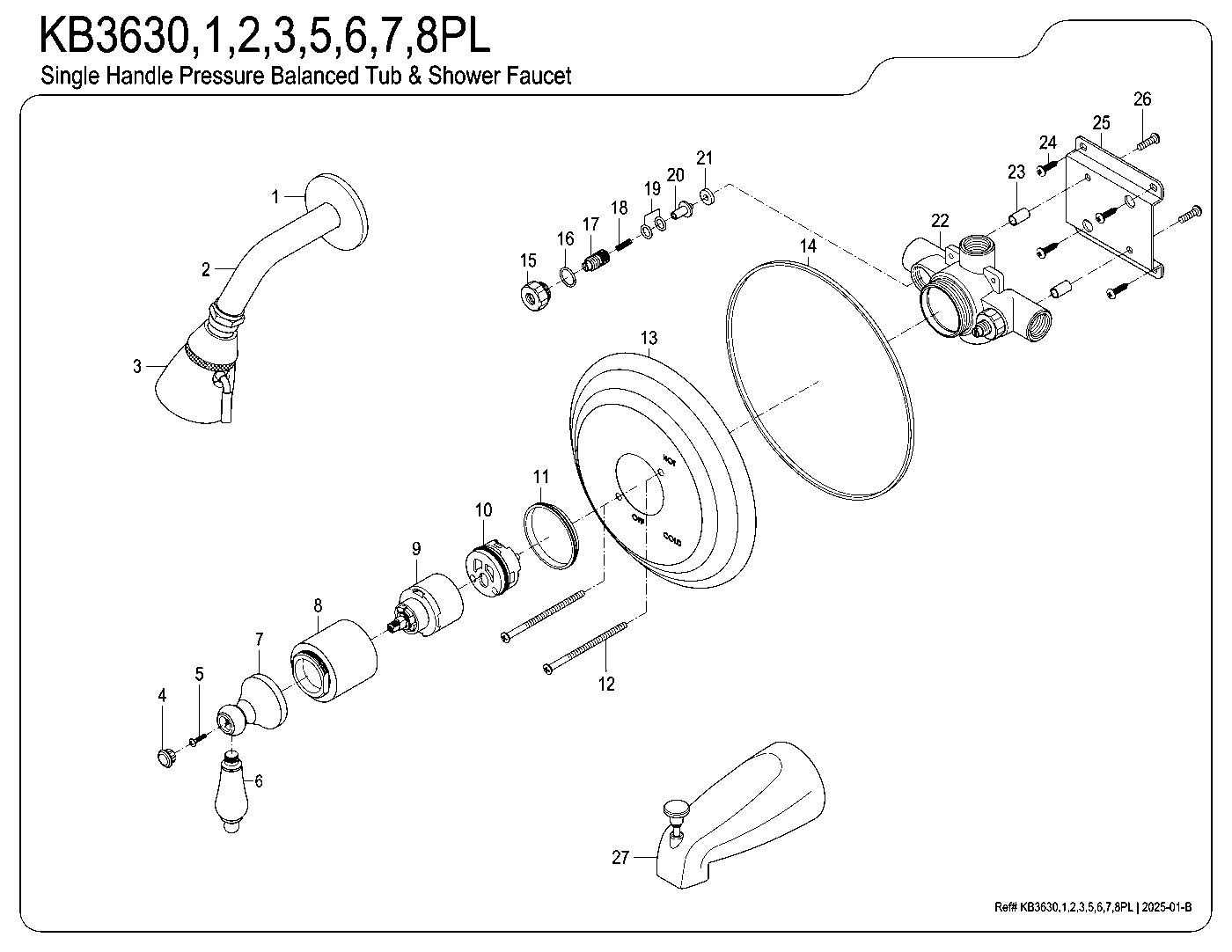

Restoration KB3630PL exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

Restoration KB3630PL parts questions

Which Kingston Brass models does this Restoration parts diagram cover?

KB3630PL, KB3631PL, KB3632PL, KB3633PL, KB3635PL, KB3636PL, KB3637PL, KB3638PL. They are the same single-handle 3-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KB3630PL come in?

Matte Black (KB3630PL), Polished Chrome (KB3631PL), Polished Brass (KB3632PL), Antique Brass (KB3633PL), Oil Rubbed Bronze (KB3635PL), Polished Nickel (KB3636PL), Brushed Brass (KB3637PL), Brushed Nickel (KB3638PL).

What replacement handles fit the KB3630PL?

Kingston's handle numbers follow the faucet model. We list 8 matching handles in every finish we carry.

How do I order a part from the KB363xPL diagram?

Kingston numbers the parts on this diagram (23 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
