Wall Mount Tub and Shower Faucet
Kingston Brass · Tub and Shower Faucets

Kingston Brass NuvoFusion KB3630NDL parts

Wall Mount Tub and Shower Faucet. One parts diagram covers all 8 finishes of this model.

Model numbers: KB3630NDLKB3631NDLKB3632NDLKB3633NDLKB3635NDLKB3636NDLKB3637NDLKB3638NDL

Open the diagramKingston’s PDF

NuvoFusion KB3630NDL exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

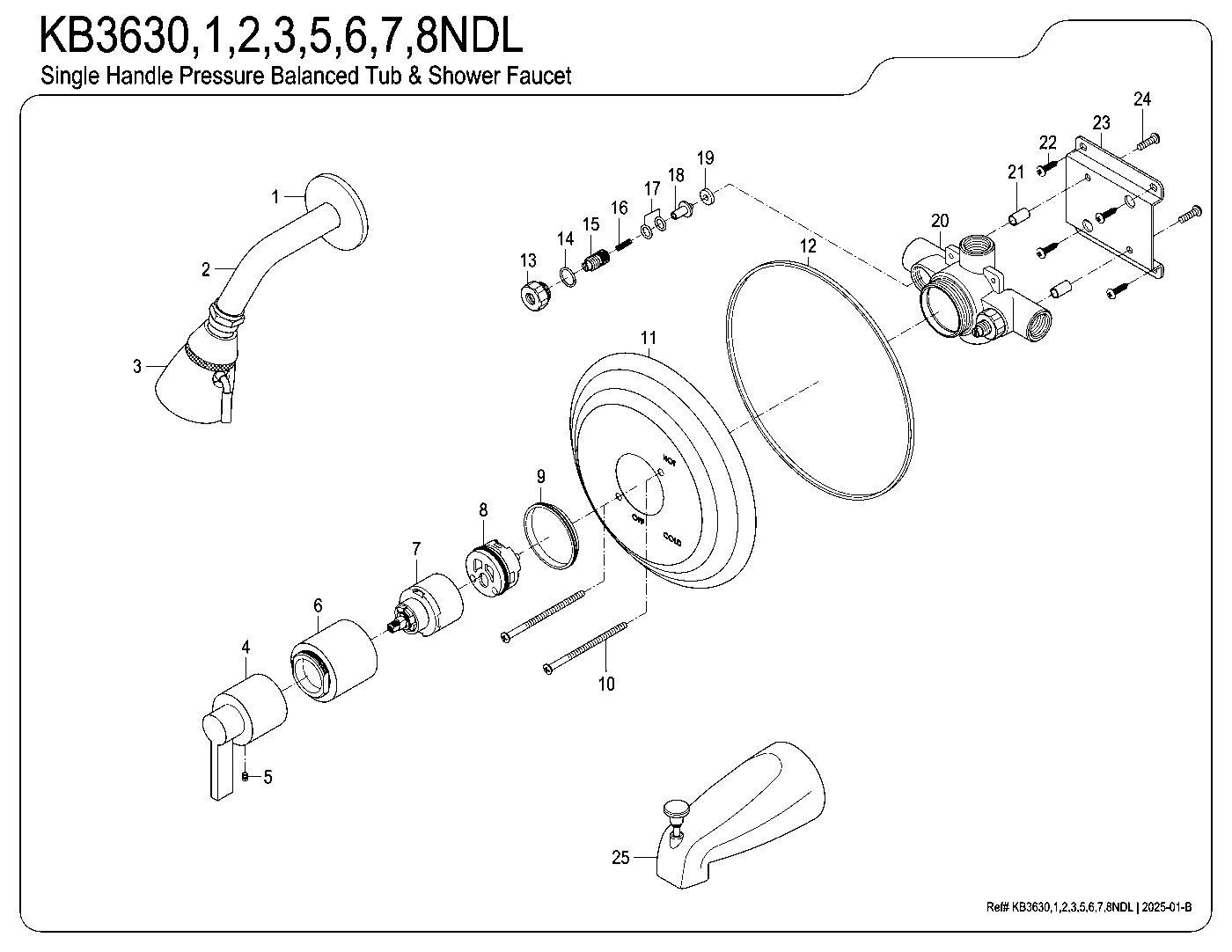

NuvoFusion KB3630NDL exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

NuvoFusion KB3630NDL parts questions

Which Kingston Brass models does this NuvoFusion parts diagram cover?

KB3630NDL, KB3631NDL, KB3632NDL, KB3633NDL, KB3635NDL, KB3636NDL, KB3637NDL, KB3638NDL. They are the same wall mount tub and shower faucet in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KB3630NDL come in?

Matte Black (KB3630NDL), Polished Chrome (KB3631NDL), Polished Brass (KB3632NDL), Antique Brass (KB3633NDL), Oil Rubbed Bronze (KB3635NDL), Polished Nickel (KB3636NDL), Brushed Brass (KB3637NDL), Brushed Nickel (KB3638NDL).

What replacement handles fit the KB3630NDL?

We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.

How do I order a part from the KB363xNDL diagram?

Kingston numbers the parts on this diagram (22 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.

NuvoFusion KB363xNDL in every finish
