Single-Handle 3-Hole Wall Mount Tub and Shower Faucet
Kingston Brass · Tub and Shower Faucets

Kingston Brass American Classic KB3630ACL parts

Single-Handle 3-Hole Wall Mount Tub and Shower Faucet. One parts diagram covers all 7 finishes of this model.

Model numbers: KB3630ACLKB3631ACLKB3632ACLKB3633ACLKB3635ACLKB3637ACLKB3638ACL

Replacement handles for the KB363xACL

Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.

Matte Black

Polished Chrome

Polished Brass

Antique Brass

Oil Rubbed Bronze

Brushed Brass

Brushed Nickel

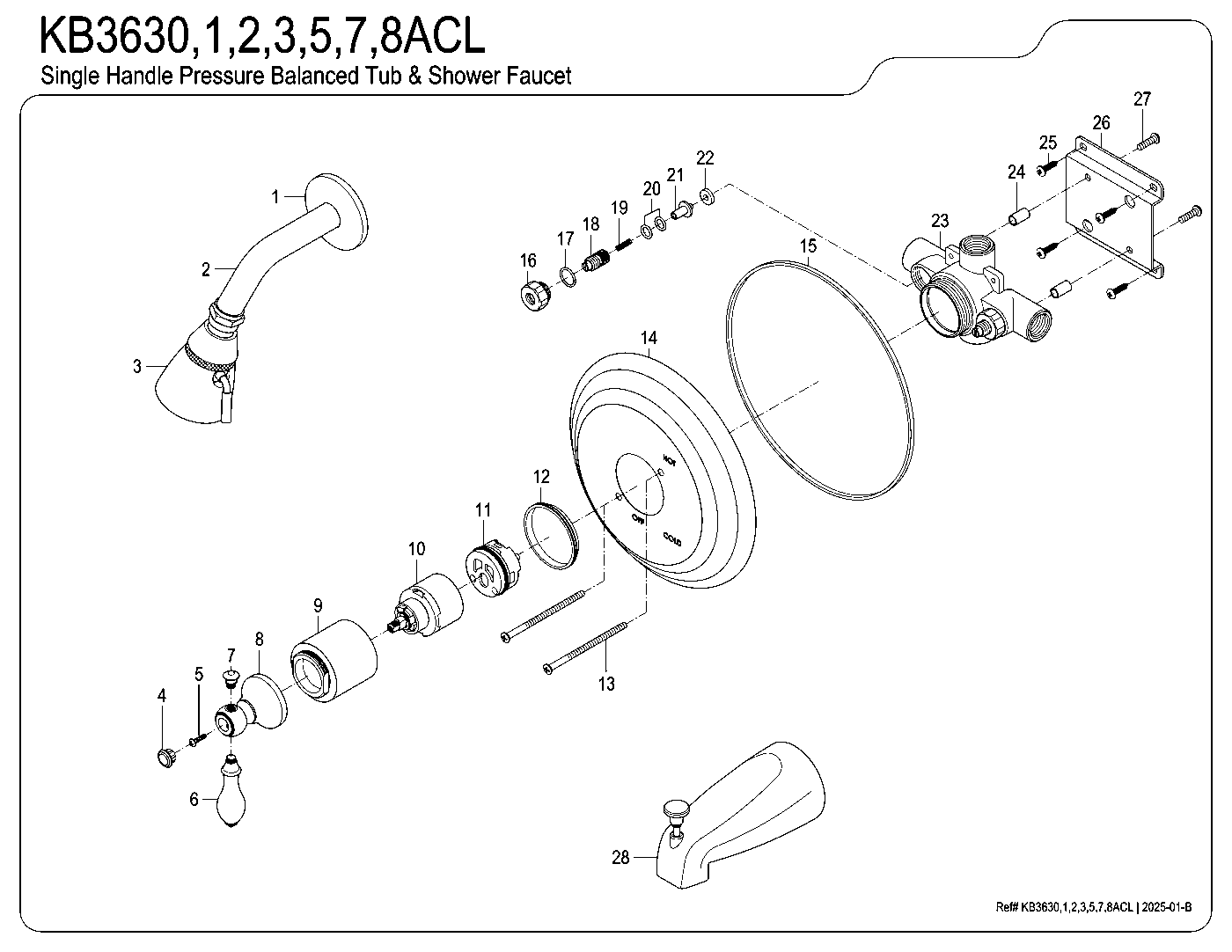

American Classic KB3630ACL exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

American Classic KB3630ACL exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

American Classic KB3630ACL parts questions

Which Kingston Brass models does this American Classic parts diagram cover?

KB3630ACL, KB3631ACL, KB3632ACL, KB3633ACL, KB3635ACL, KB3637ACL, KB3638ACL. They are the same single-handle 3-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KB3630ACL come in?

Matte Black (KB3630ACL), Polished Chrome (KB3631ACL), Polished Brass (KB3632ACL), Antique Brass (KB3633ACL), Oil Rubbed Bronze (KB3635ACL), Brushed Brass (KB3637ACL), Brushed Nickel (KB3638ACL).

What replacement handles fit the KB3630ACL?

Kingston's handle numbers follow the faucet model. We list 7 matching handles in every finish we carry.

How do I order a part from the KB363xACL diagram?

Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
