Kingston Brass NuvoFusion KB2471NDL parts
Two-Handle 2-Hole Deck Mount Laundry Faucet. One parts diagram covers all 2 finishes of this model.

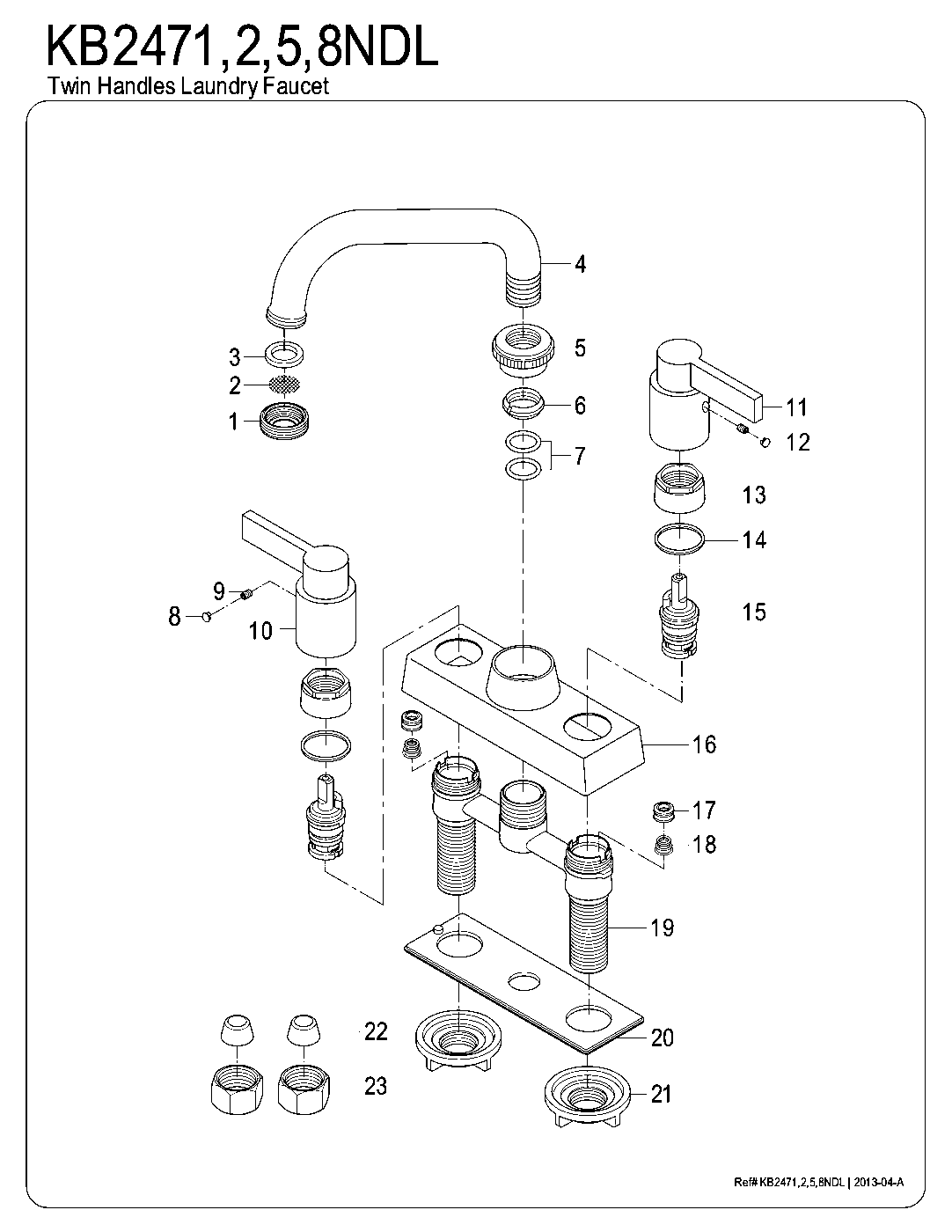

NuvoFusion KB2471NDL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramNuvoFusion KB2471NDL parts questions
Which Kingston Brass models does this NuvoFusion parts diagram cover?
KB2471NDL, KB2478NDL. They are the same two-handle 2-hole deck mount laundry faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB2471NDL come in?
Polished Chrome (KB2471NDL), Brushed Nickel (KB2478NDL).
What replacement handles fit the KB2471NDL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB247xNDL diagram?
Kingston numbers the parts on this diagram (21 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
