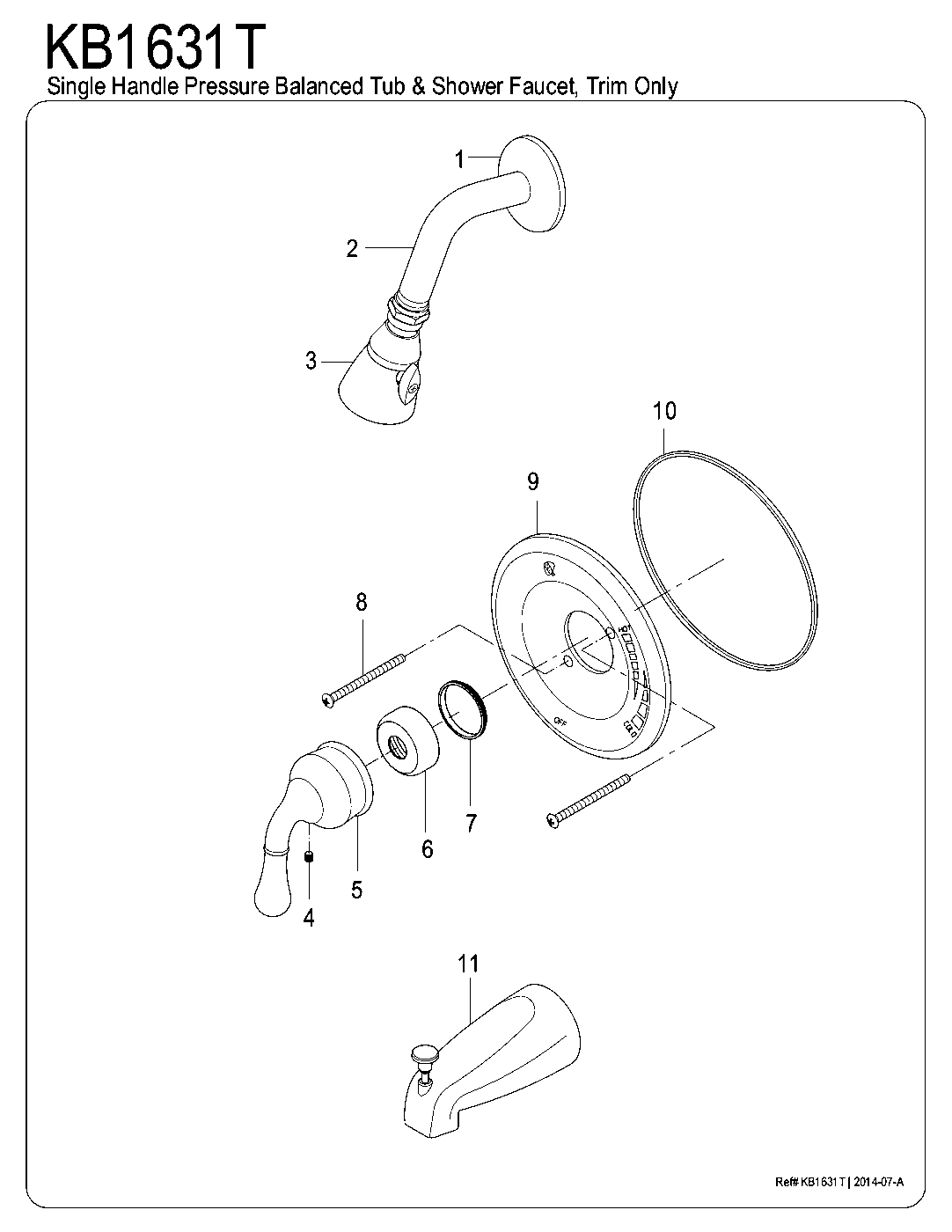

Magellan KB1631T exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramMagellan KB1631T parts questions
Which Kingston Brass models does this Magellan parts diagram cover?
KB1631T, KB1632T, KB1633T, KB1634T, KB1635T, KB1637T, KB1638T, KB1639T. They are the same single-handle 3-hole wall mount tub and shower faucet trim only in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB1631T come in?
Polished Chrome (KB1631T), Polished Brass (KB1632T), Black Stainless (KB1633T), Polished Chrome/Polished Brass (KB1634T), Oil Rubbed Bronze (KB1635T), Brushed Nickel/Polished Chrome (KB1637T), Brushed Nickel (KB1638T), Brushed Nickel/Polished Brass (KB1639T).
What replacement handles fit the KB1631T?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB163xT diagram?
Kingston numbers the parts on this diagram (9 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
