Single-Handle 2-Hole Wall Mount Shower Faucet
Kingston Brass · Shower Faucets

Kingston Brass Magellan KB1631SO parts

Single-Handle 2-Hole Wall Mount Shower Faucet. One parts diagram covers all 6 finishes of this model.

Model numbers: KB1631SOKB1632SOKB1634SOKB1637SOKB1638SOKB1639SO

Open the diagramKingston’s PDF

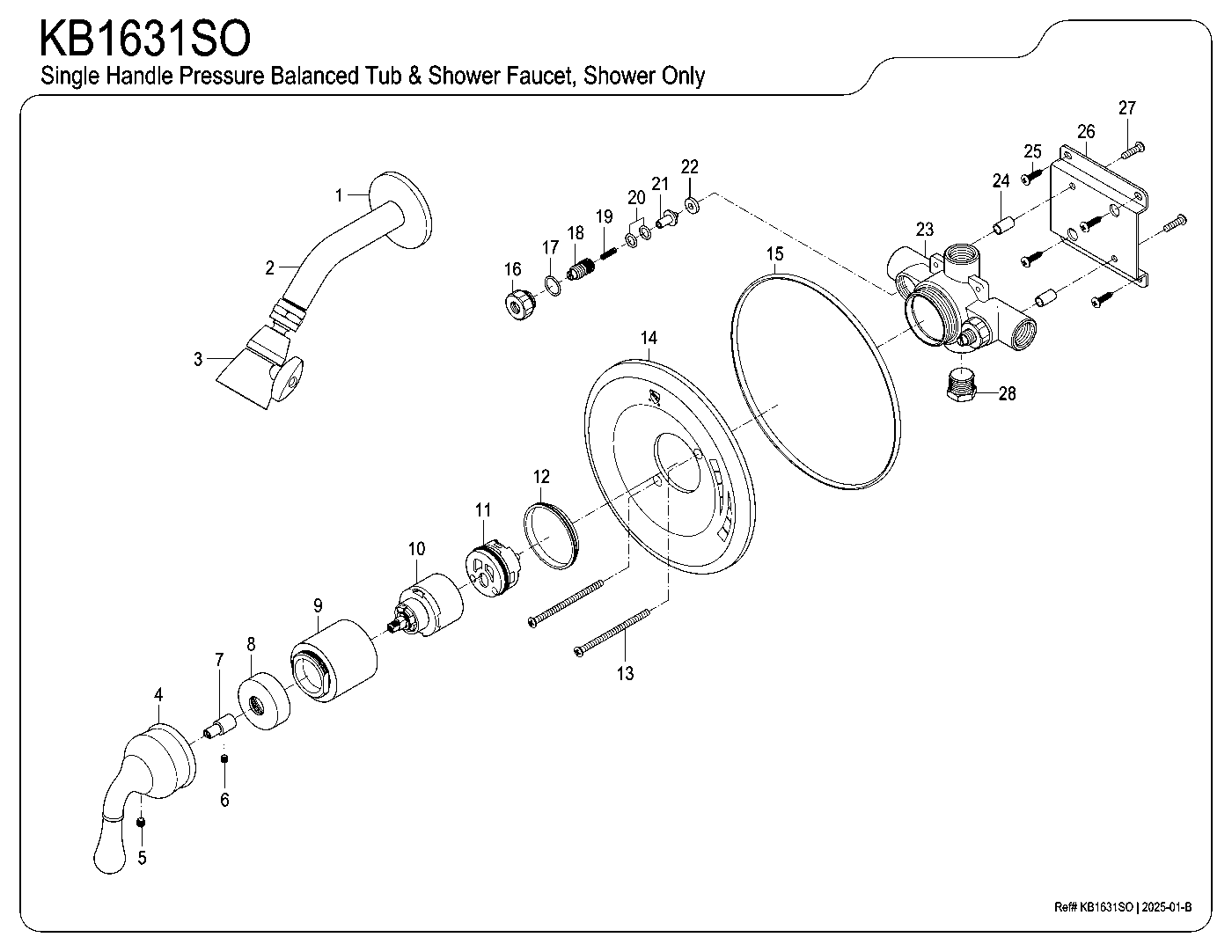

Magellan KB1631SO exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Magellan KB1631SO exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

Magellan KB1631SO parts questions

Which Kingston Brass models does this Magellan parts diagram cover?

KB1631SO, KB1632SO, KB1634SO, KB1637SO, KB1638SO, KB1639SO. They are the same single-handle 2-hole wall mount shower faucet in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KB1631SO come in?

Polished Chrome (KB1631SO), Polished Brass (KB1632SO), Polished Chrome/Polished Brass (KB1634SO), Brushed Nickel/Polished Chrome (KB1637SO), Brushed Nickel (KB1638SO), Brushed Nickel/Polished Brass (KB1639SO).

What replacement handles fit the KB1631SO?

We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.

How do I order a part from the KB163xSO diagram?

Kingston numbers the parts on this diagram (22 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
