Kingston Brass Magellan KB1631 parts
Single-Handle 3-Hole Wall Mount Tub and Shower Faucet. One parts diagram covers all 6 finishes of this model.
Replacement handles for the KB163x
Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.
Polished Chrome
- KBH1631$22.72
Polished Brass
- KBH1632$29.22
Polished Chrome/Polished Brass
- KBH1634$29.22
Brushed Nickel
- KBH1638$29.22
Brushed Nickel/Polished Brass
- KBH1639$29.22

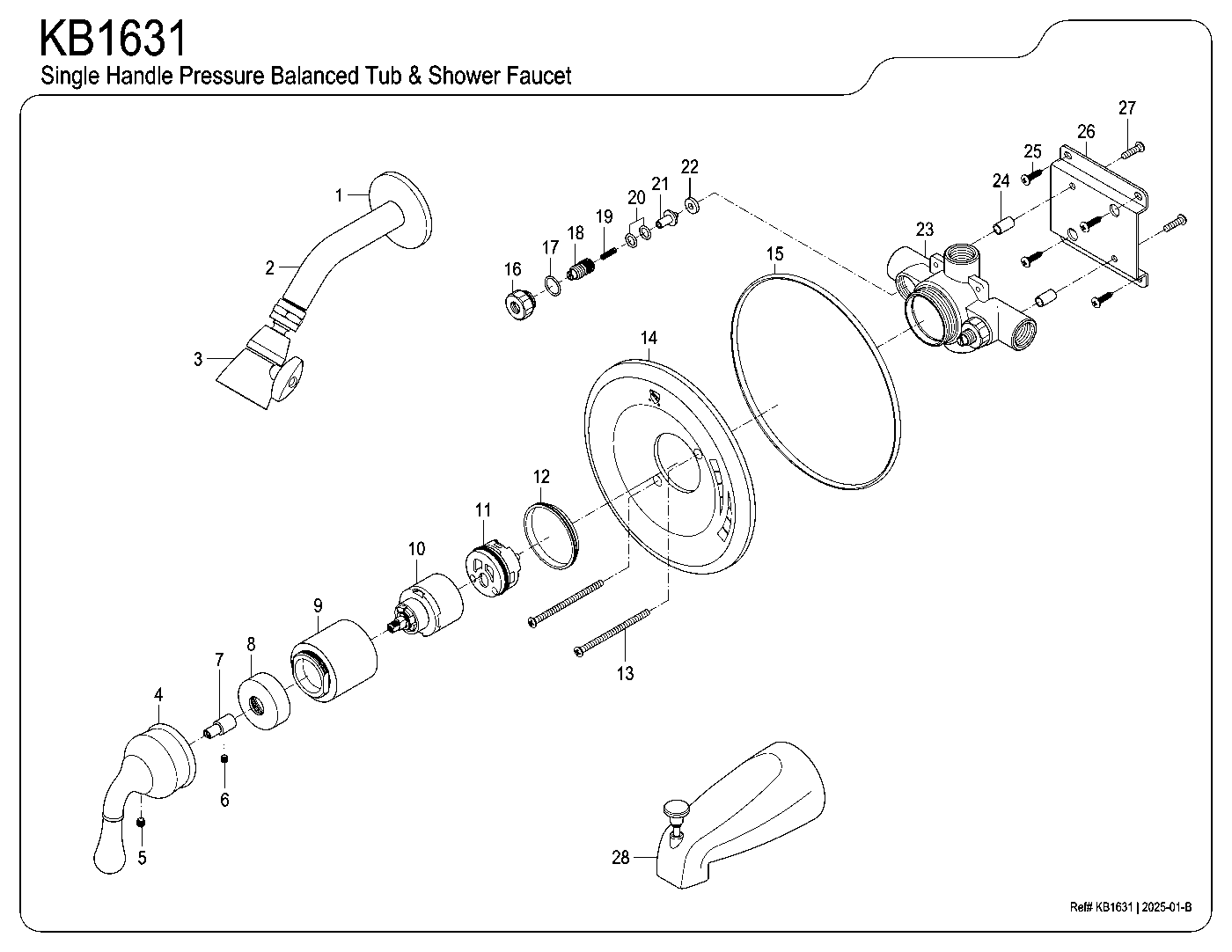

Magellan KB1631 exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramMagellan KB1631 parts questions
Which Kingston Brass models does this Magellan parts diagram cover?
KB1631, KB1632, KB1634, KB1637, KB1638, KB1639. They are the same single-handle 3-hole wall mount tub and shower faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB1631 come in?
Polished Chrome (KB1631), Polished Brass (KB1632), Polished Chrome/Polished Brass (KB1634), Brushed Nickel/Polished Chrome (KB1637), Brushed Nickel (KB1638), Brushed Nickel/Polished Brass (KB1639).
What replacement handles fit the KB1631?
Kingston's handle numbers follow the faucet model. We list 5 matching handles in every finish we carry.
How do I order a part from the KB163x diagram?
Kingston numbers the parts on this diagram (23 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
