Kingston Brass Duchess KB1601PKX parts

Two-Handle 3-Hole Deck Mount 4" Centerset Bathroom Faucet with Plastic Pop-Up. One parts diagram covers all 5 finishes of this model.

Model numbers: KB1601PKX KB1602PKX KB1604PKX KB1605PKX KB1608PKX

Open the diagram Kingston’s PDF

Replacement handles for the KB160xPKX

Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.

Duchess KB1601PKX exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

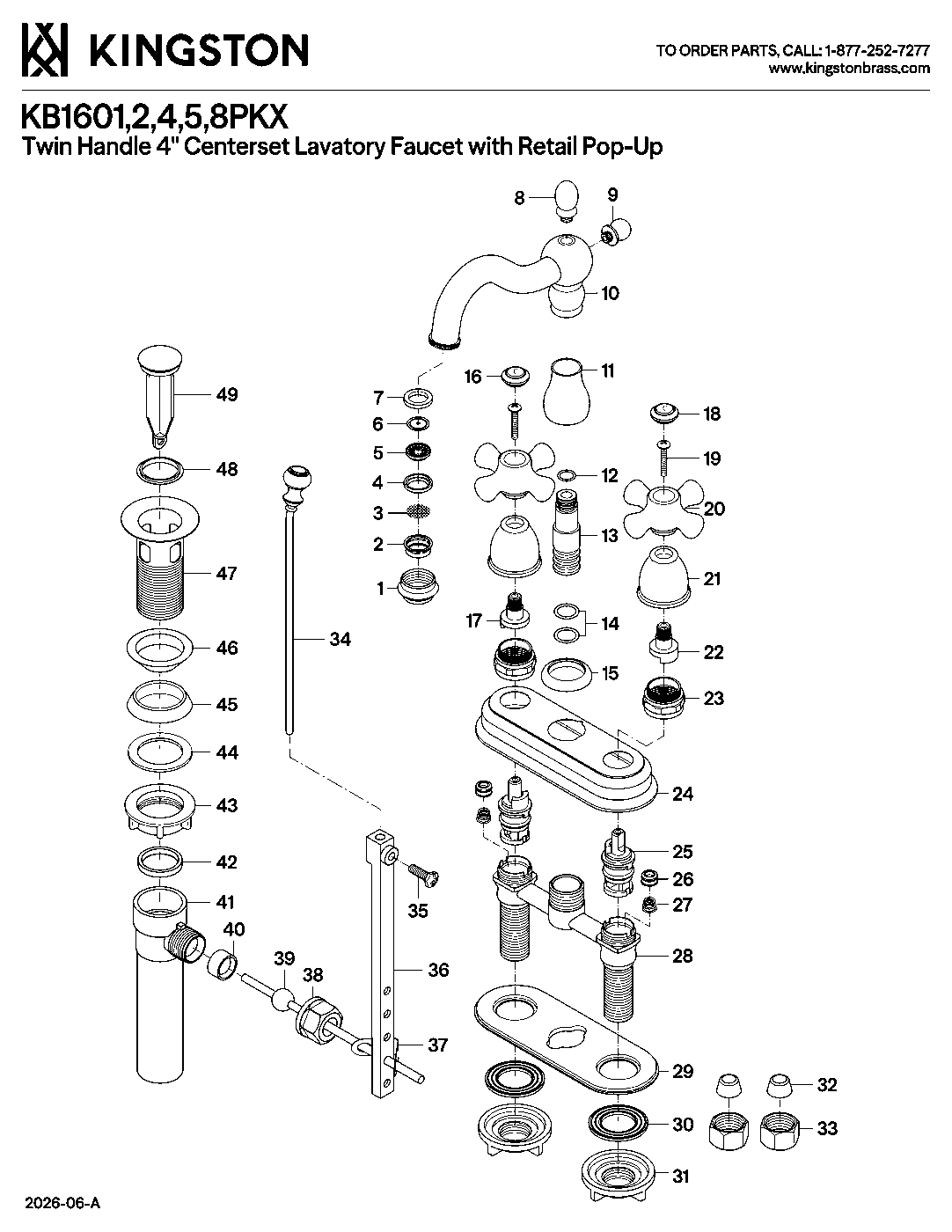

Duchess KB1601PKX exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

Duchess KB1601PKX parts questions

Which Kingston Brass models does this Duchess parts diagram cover?

KB1601PKX, KB1602PKX, KB1604PKX, KB1605PKX, KB1608PKX. They are the same two-handle 3-hole deck mount 4" centerset bathroom faucet with plastic pop-up in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KB1601PKX come in?

Polished Chrome (KB1601PKX), Polished Brass (KB1602PKX), Polished Chrome/Polished Brass (KB1604PKX), Oil Rubbed Bronze (KB1605PKX), Brushed Nickel (KB1608PKX).

What replacement handles fit the KB1601PKX?

Kingston's handle numbers follow the faucet model, for example KBH1601PKXH (hot) and KBH1601PKXC (cold). We list 8 matching handles in every finish we carry.

How do I order a part from the KB160xPKX diagram?

Kingston numbers the parts on this diagram (48 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
