Heritage 4 in. Centerset Bathroom Faucet
Kingston Brass · 4" Centerset Bathroom Faucets

Kingston Brass Kingston Brass KB1600AL parts

Heritage 4 in. Centerset Bathroom Faucet. One parts diagram covers all 10 finishes of this model.

Model numbers: KB1600ALKB1601ALKB1602ALKB1603ALKB1604ALKB1605ALKB1606ALKB1607ALKB1608ALKB1609AL

Open the diagramKingston’s PDF

Replacement handles for the KB160xAL

Configuration required Matched by Kingston model number. Pick the finish that matches your faucet.

Matte Black

Polished Chrome

Polished Brass

Antique Brass

Polished Chrome/Polished Brass

Oil Rubbed Bronze

Polished Nickel

Brushed Brass

Brushed Nickel

Brushed Nickel/Polished Brass

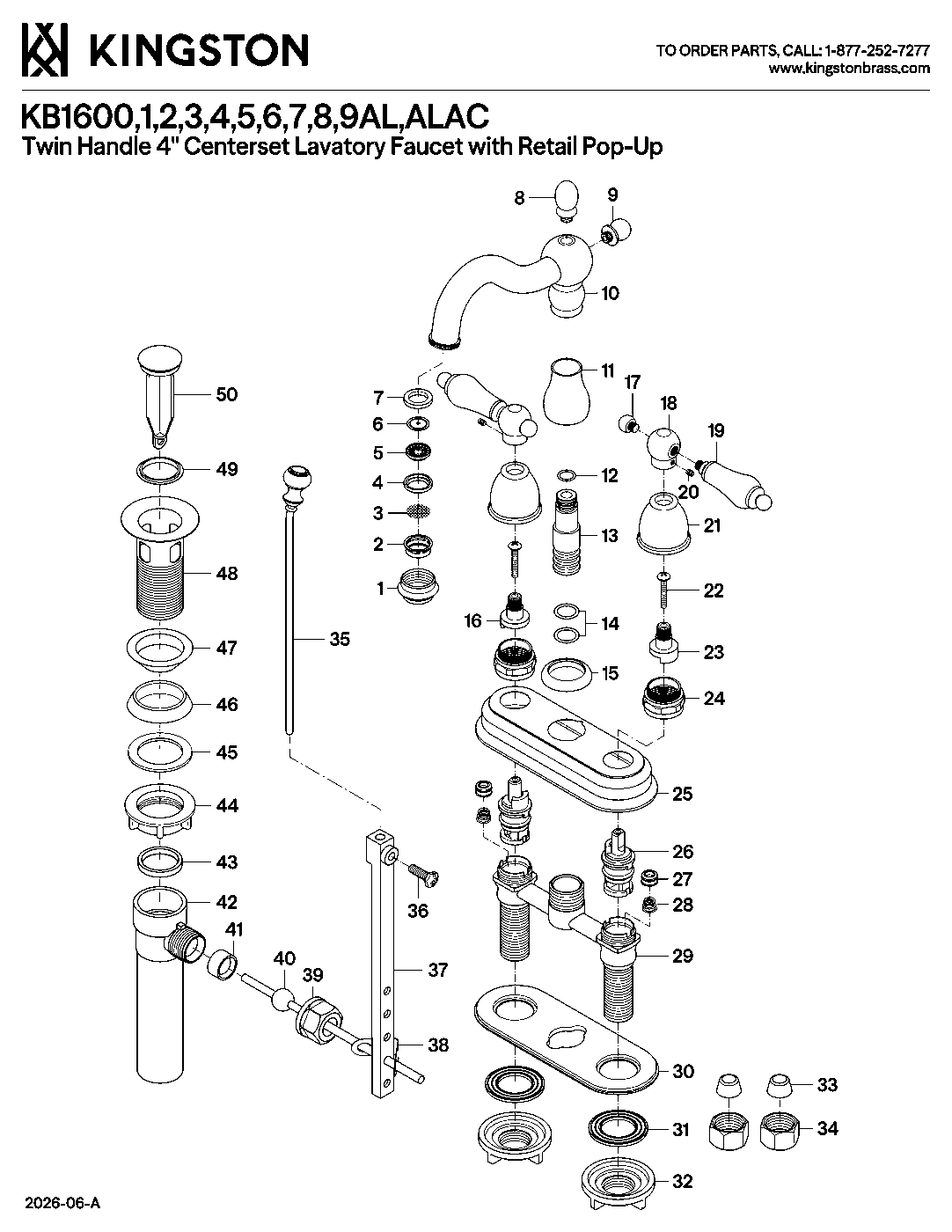

Kingston Brass KB1600AL exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Kingston Brass KB1600AL exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Need a part that isn’t listed?

Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.

Request a part from this diagram

Kingston Brass KB1600AL parts questions

Which Kingston Brass models does this Kingston Brass parts diagram cover?

KB1600AL, KB1601AL, KB1602AL, KB1603AL, KB1604AL, KB1605AL, KB1606AL, KB1607AL, KB1608AL, KB1609AL. They are the same heritage 4 in. centerset bathroom faucet in different finishes, so they share one parts diagram.

What finishes does the Kingston Brass KB1600AL come in?

Matte Black (KB1600AL), Polished Chrome (KB1601AL), Polished Brass (KB1602AL), Antique Brass (KB1603AL), Polished Chrome/Polished Brass (KB1604AL), Oil Rubbed Bronze (KB1605AL), Polished Nickel (KB1606AL), Brushed Brass (KB1607AL), Brushed Nickel (KB1608AL), Brushed Nickel/Polished Brass (KB1609AL).

What replacement handles fit the KB1600AL?

Kingston's handle numbers follow the faucet model. We list 10 matching handles in every finish we carry.

How do I order a part from the KB160xAL diagram?

Kingston numbers the parts on this diagram (47 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.

Kingston Brass KB160xAL in every finish
