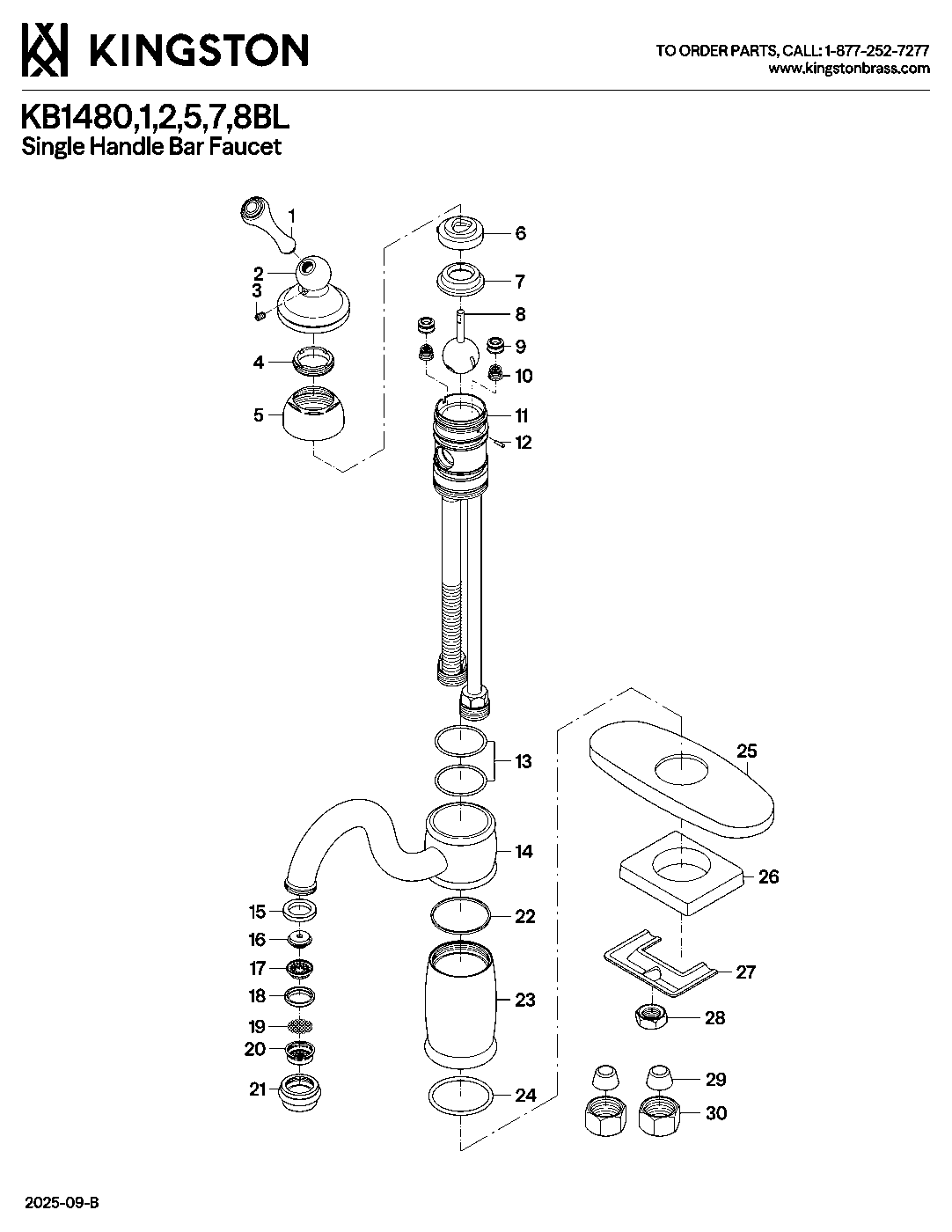

Vintage KB1480BL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramVintage KB1480BL parts questions
Which Kingston Brass models does this Vintage parts diagram cover?
KB1480BL, KB1481BL, KB1482BL, KB1485BL, KB1487BL, KB1488BL. They are the same single-handle 1-hole deck mount bar faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KB1480BL come in?
Matte Black (KB1480BL), Polished Chrome (KB1481BL), Polished Brass (KB1482BL), Oil Rubbed Bronze (KB1485BL), Brushed Brass (KB1487BL), Brushed Nickel (KB1488BL).
What replacement handles fit the KB1480BL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KB148xBL diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Vintage KB148xBL in every finish
Kingston Brass KB1480BL Vintage Single-Handle Monoblock Bar Faucet, Matte Black$259.97Matte Black
Vintage KB1481BL Single-Handle 1-Hole Deck Mount Bar Faucet, Polished Chrome$162.47Polished Chrome
Vintage KB1482BL Single-Handle 1-Hole Deck Mount Bar Faucet, Polished Brass$198.22Polished Brass
Kingston Brass KB1485BL Vintage Single-Handle Monoblock Bar Faucet, Oil Rubbed Bronze$214.47Oil Rubbed Bronze
Kingston Brass KB1487BL Vintage Single-Handle Monoblock Bar Faucet, Brushed Brass$259.97Brushed Brass
Vintage KB1488BL Single-Handle 1-Hole Deck Mount Bar Faucet, Brushed Nickel$214.47Brushed Nickel
