Kingston Brass American Classic GSY7771ACL parts
Single-Handle 1-or-3 Hole Deck Mount Pull-Down Sprayer Kitchen Faucet. One parts diagram covers all 4 finishes of this model.
Model numbers: GSY7771ACLGSY7775ACLGSY7776ACLGSY7778ACL

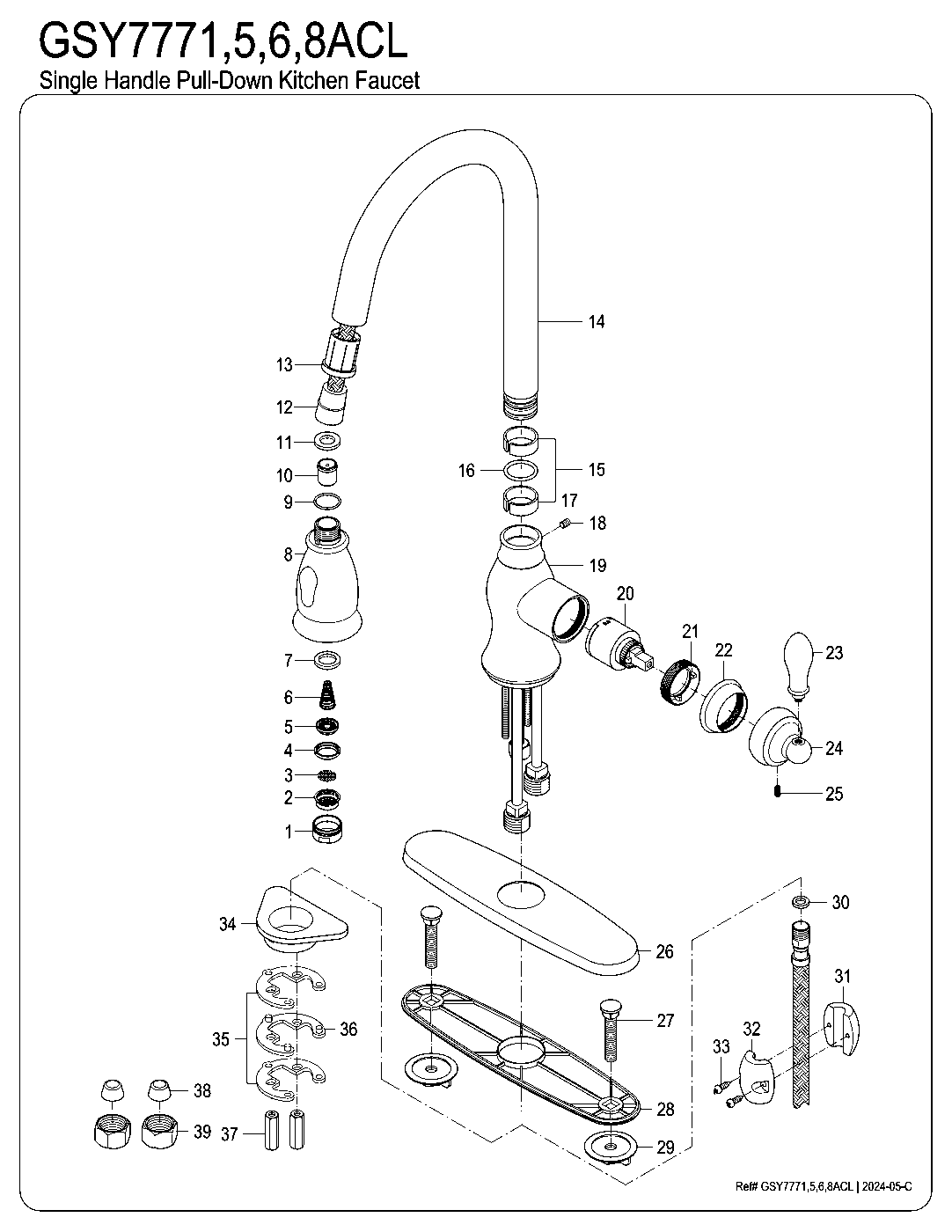

American Classic GSY7771ACL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramAmerican Classic GSY7771ACL parts questions
Which Kingston Brass models does this American Classic parts diagram cover?
GSY7771ACL, GSY7775ACL, GSY7776ACL, GSY7778ACL. They are the same single-handle 1-or-3 hole deck mount pull-down sprayer kitchen faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass GSY7771ACL come in?
Polished Chrome (GSY7771ACL), Oil Rubbed Bronze (GSY7775ACL), Naples Bronze (GSY7776ACL), Brushed Nickel (GSY7778ACL).
What replacement handles fit the GSY7771ACL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the GSY777xACL diagram?
Kingston numbers the parts on this diagram (33 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
American Classic GSY777xACL in every finish
American Classic GSY7771ACL Single-Handle 1-or-3 Hole Deck Mount Pull-Down Sprayer Kitchen Faucet, Polished Chrome$259.97Polished Chrome
Gourmetier GSY7775ACL American Classic Single-Handle Pull-Down Sprayer Kitchen Faucet, Oil Rubbed Bronze$357.47Oil Rubbed Bronze
Gourmetier GSY7776ACL American Classic Single-Handle Pull-Down Sprayer Kitchen Faucet, Naples Bronze$357.47Naples Bronze
Gourmetier GSY7778ACL American Classic Single-Handle Pull-Down Sprayer Kitchen Faucet, Brushed Nickel$357.47Brushed Nickel
