Kingston Brass American Classic FSY7701ACL parts
Single-Handle 1-or-3 Hole Deck Mount Bathroom Faucet with Push Pop-Up. One parts diagram covers all 3 finishes of this model.
Model numbers: FSY7701ACLFSY7705ACLFSY7708ACL

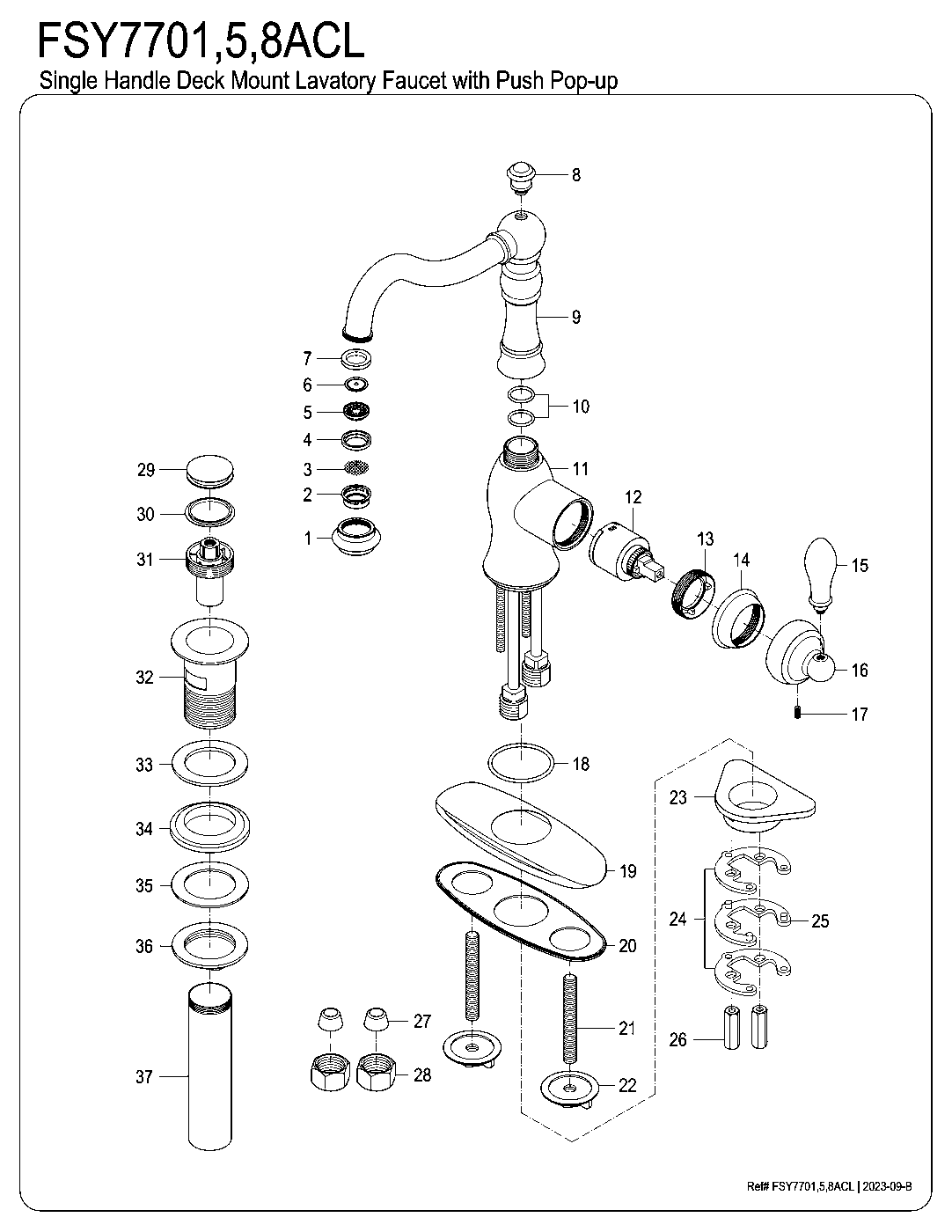

American Classic FSY7701ACL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramAmerican Classic FSY7701ACL parts questions
Which Kingston Brass models does this American Classic parts diagram cover?
FSY7701ACL, FSY7705ACL, FSY7708ACL. They are the same single-handle 1-or-3 hole deck mount bathroom faucet with push pop-up in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass FSY7701ACL come in?
Polished Chrome (FSY7701ACL), Oil Rubbed Bronze (FSY7705ACL), Brushed Nickel (FSY7708ACL).
What replacement handles fit the FSY7701ACL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the FSY770xACL diagram?
Kingston numbers the parts on this diagram (33 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
American Classic FSY770xACL in every finish
American Classic FSY7701ACL Single-Handle 1-or-3 Hole Deck Mount Bathroom Faucet with Push Pop-Up, Polished Chrome$266.47Polished Chrome
American Classic FSY7705ACL Single-Handle 1-or-3 Hole Deck Mount Bathroom Faucet with Push Pop-Up, Oil Rubbed Bronze$308.72Oil Rubbed Bronze
American Classic FSY7708ACL Single-Handle 1-or-3 Hole Deck Mount Bathroom Faucet with Push Pop-Up, Brushed Nickel$308.72Brushed Nickel
