Kingston Brass Vintage CCR6170 parts
60-Inch Add-On Shower with 17-Inch Shower Arm. One parts diagram covers all 4 finishes of this model.

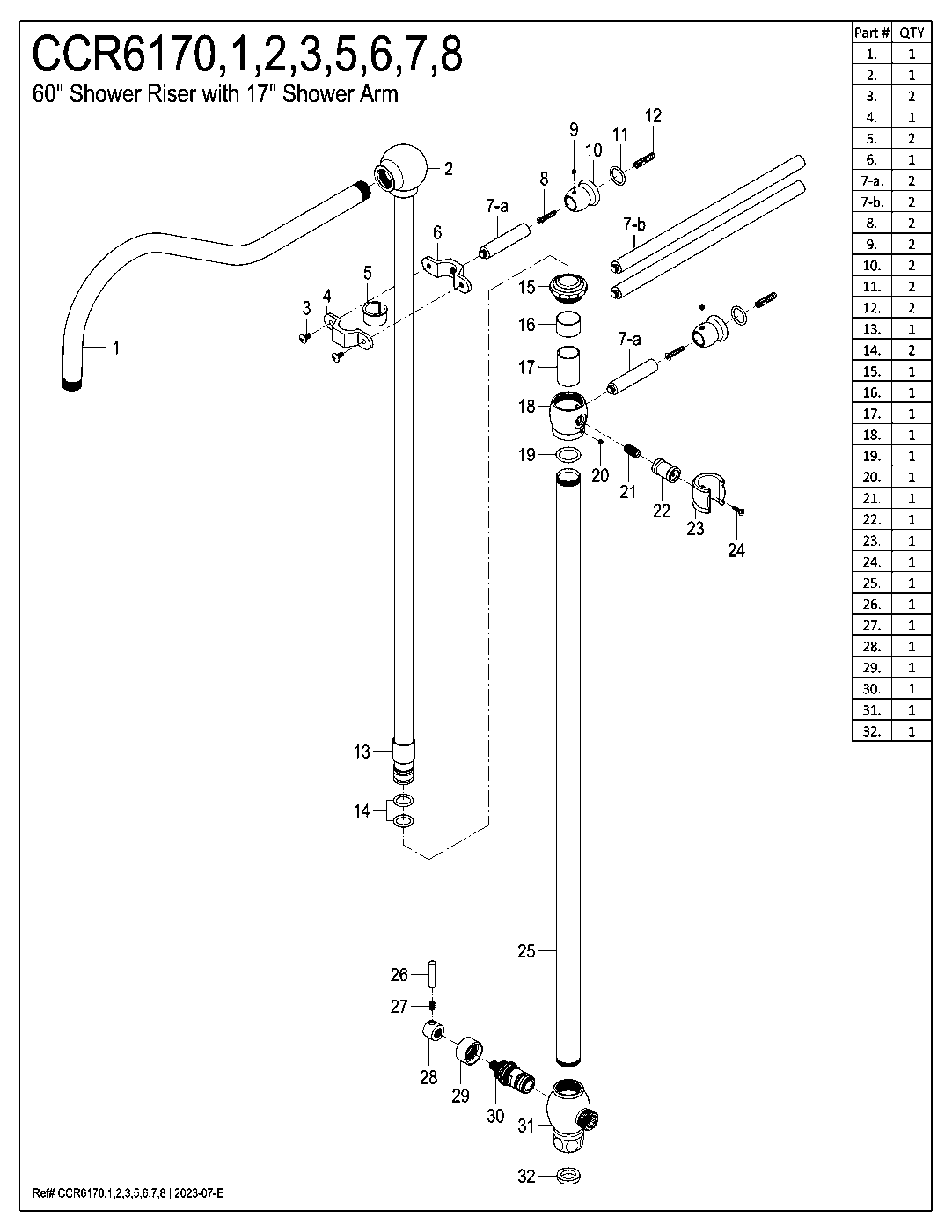

Vintage CCR6170 exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramVintage CCR6170 parts questions
Which Kingston Brass models does this Vintage parts diagram cover?
CCR6170, CCR6173, CCR6176, CCR6177. They are the same 60-inch add-on shower with 17-inch shower arm in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass CCR6170 come in?
Matte Black (CCR6170), Antique Brass (CCR6173), Polished Nickel (CCR6176), Brushed Brass (CCR6177).
What replacement handles fit the CCR6170?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the CCR617x diagram?
Kingston numbers the parts on this diagram (28 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Vintage CCR617x in every finish
Vintage CCR6170 60-Inch Add-On Shower with 17-Inch Shower Arm, Matte Black$597.97Matte Black
Vintage CCR6173 60-Inch Add-On Shower with 17-Inch Shower Arm, Antique Brass$597.97Antique Brass
Vintage CCR6176 60-Inch Add-On Shower with 17-Inch Shower Arm, Polished Nickel$913.22Polished Nickel
Vintage CCR6177 60-Inch Add-On Shower with 17-Inch Shower Arm, Brushed Brass$656.47Brushed Brass
