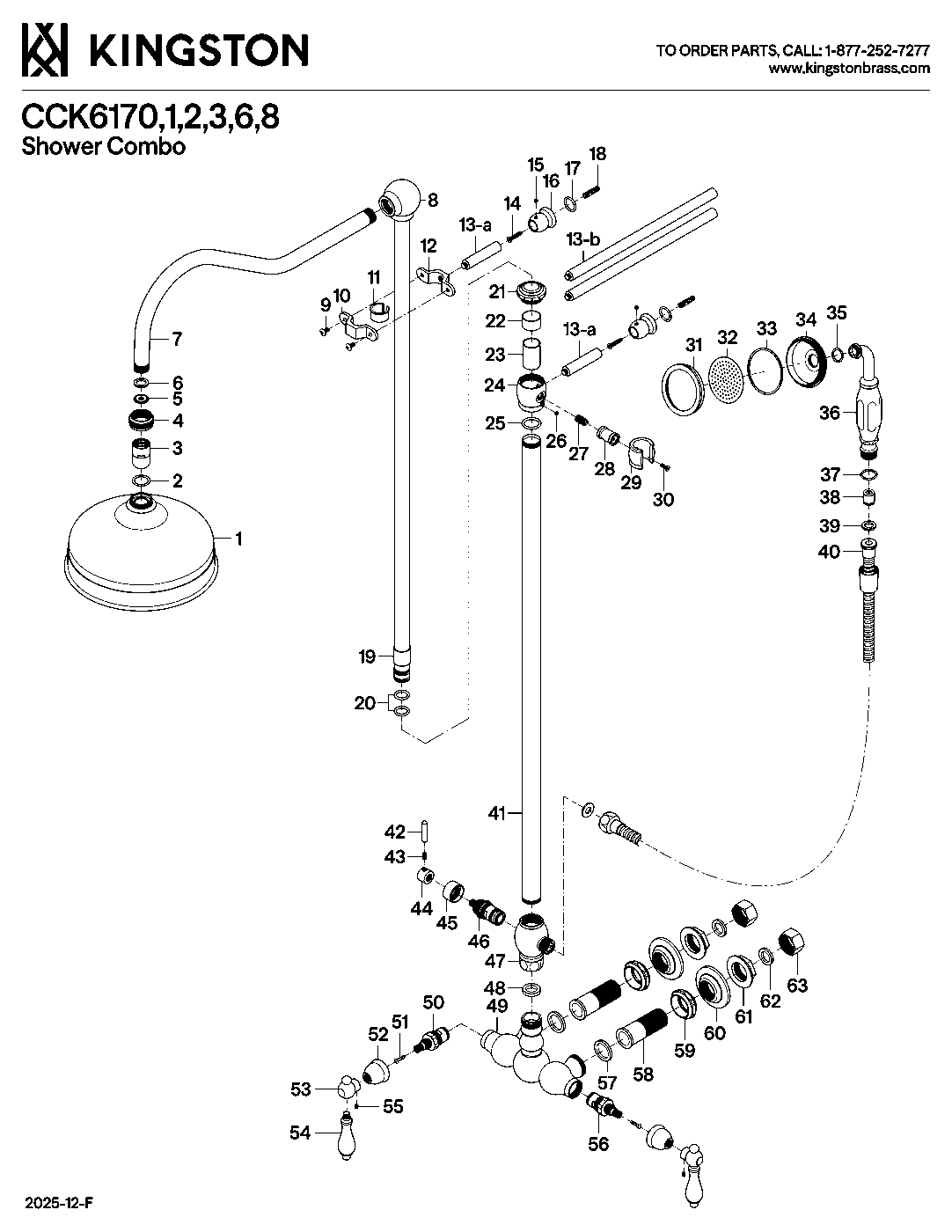

Vintage CCK6170 exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramVintage CCK6170 parts questions
Which Kingston Brass models does this Vintage parts diagram cover?
CCK6170, CCK6171, CCK6172, CCK6173, CCK6175, CCK6177, CCK6178. They are the same tub wall mount rain drop shower system with hand shower in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass CCK6170 come in?
Matte Black (CCK6170), Polished Chrome (CCK6171), Polished Brass (CCK6172), Antique Brass (CCK6173), Oil Rubbed Bronze (CCK6175), Brushed Brass (CCK6177), Brushed Nickel (CCK6178).
What replacement handles fit the CCK6170?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the CCK617x diagram?
Kingston numbers the parts on this diagram (56 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Vintage CCK617x in every finish
Vintage CCK6170 Tub Wall Mount Rain Drop Shower System with Hand Shower, Matte Black$1,904.27Matte Black
Vintage CCK6171 Tub Wall Mount Rain Drop Shower System with Hand Shower, Polished Chrome$1,124.27Polished Chrome
Vintage CCK6172 Tub Wall Mount Rain Drop Shower System with Hand Shower, Polished Brass$1,904.27Polished Brass
Vintage CCK6173 Tub Wall Mount Rain Drop Shower System with Hand Shower, Antique Brass$1,904.27Antique Brass
Vintage CCK6175 Tub Wall Mount Rain Drop Shower System with Hand Shower, Oil Rubbed Bronze$1,452.52Oil Rubbed Bronze
Vintage CCK6177 Tub Wall Mount Rain Drop Shower System with Hand Shower, Brushed Brass$1,904.27Brushed Brass
Vintage CCK6178 Tub Wall Mount Rain Drop Shower System with Hand Shower, Brushed Nickel$1,452.52Brushed Nickel
