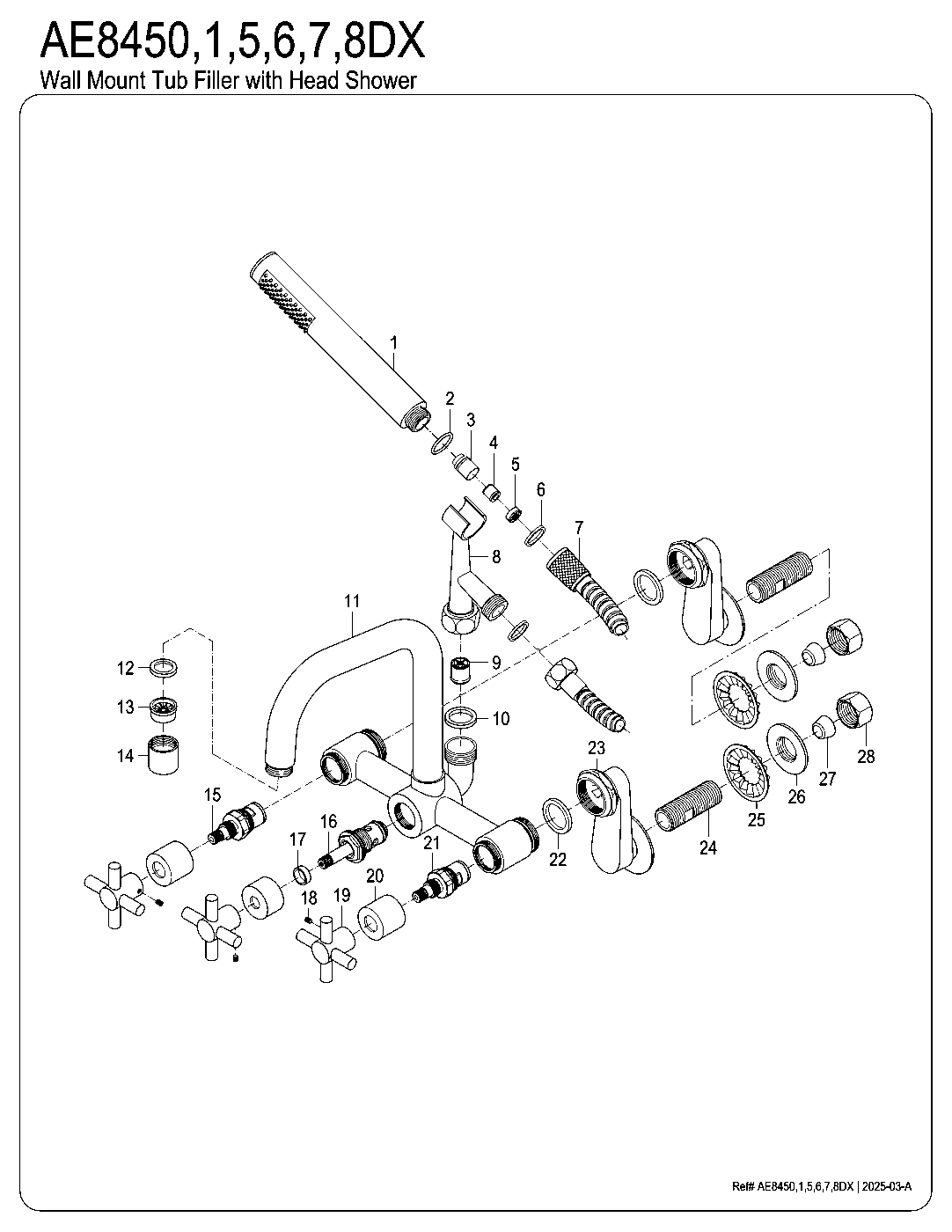

Concord AE8450DX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord AE8450DX parts questions
Which Kingston Brass models does this Concord parts diagram cover?
AE8450DX, AE8451DX, AE8455DX, AE8456DX, AE8457DX, AE8458DX. They are the same wall mount clawfoot tub faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass AE8450DX come in?
Matte Black (AE8450DX), Polished Chrome (AE8451DX), Oil Rubbed Bronze (AE8455DX), Polished Nickel (AE8456DX), Brushed Brass (AE8457DX), Brushed Nickel (AE8458DX).
What replacement handles fit the AE8450DX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the AE845xDX diagram?
Kingston numbers the parts on this diagram (27 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord AE845xDX in every finish
Concord AE8450DX Wall Mount Clawfoot Tub Faucet, Matte Black$945.72Matte Black
Concord AE8451DX Wall Mount Clawfoot Tub Faucet, Polished Chrome$796.22Polished Chrome
Concord AE8455DX Wall Mount Clawfoot Tub Faucet, Oil Rubbed Bronze$870.97Oil Rubbed Bronze
Concord AE8456DX Wall Mount Clawfoot Tub Faucet, Polished Nickel$942.47Polished Nickel
Concord AE8457DX Wall Mount Clawfoot Tub Faucet, Brushed Brass$942.47Brushed Brass
Concord AE8458DX Wall Mount Clawfoot Tub Faucet, Brushed Nickel$870.97Brushed Nickel
