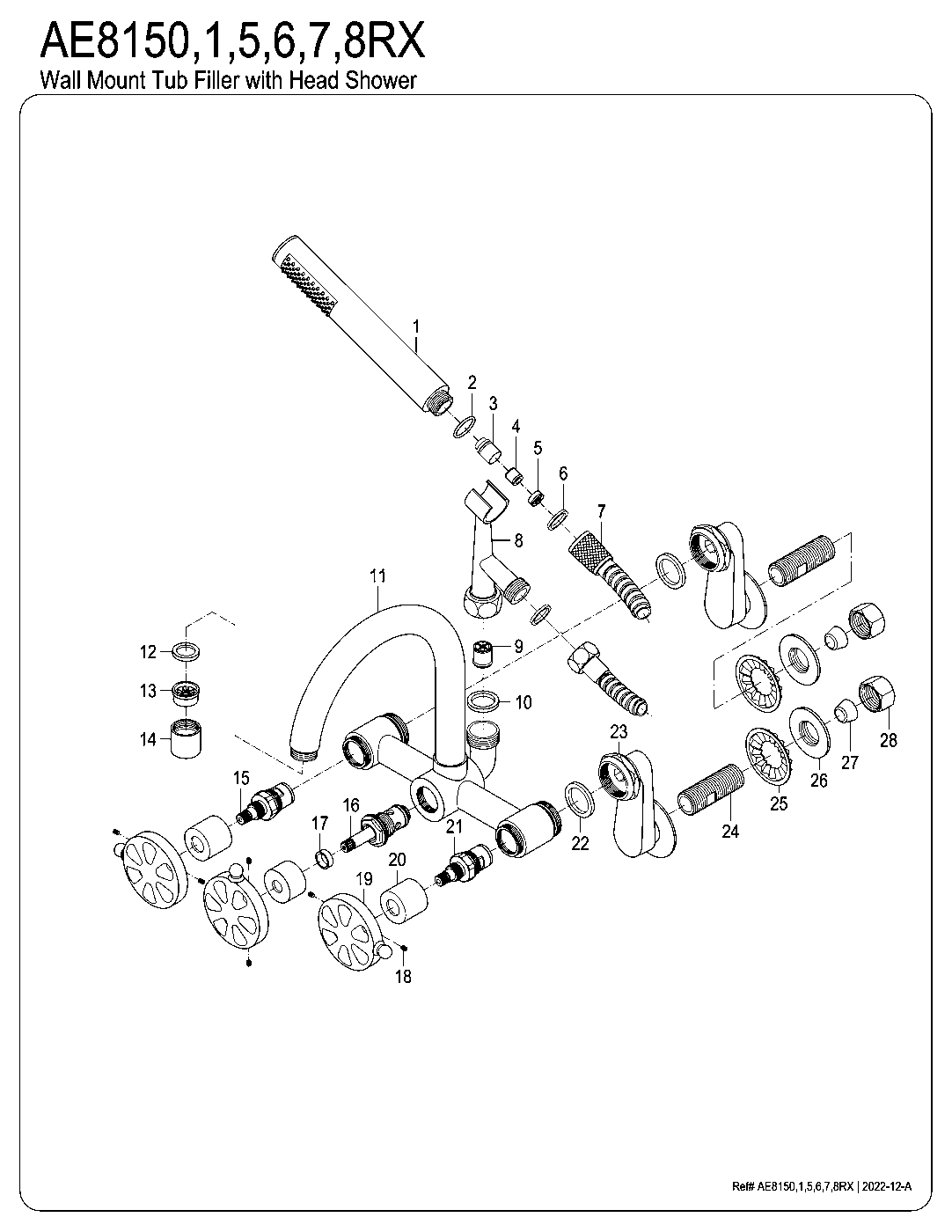

Belknap AE8150RX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramBelknap AE8150RX parts questions
Which Kingston Brass models does this Belknap parts diagram cover?
AE8150RX, AE8151RX, AE8155RX, AE8156RX, AE8157RX, AE8158RX. They are the same three-handle 2-hole tub wall mount clawfoot tub faucet with hand shower in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass AE8150RX come in?
Matte Black (AE8150RX), Polished Chrome (AE8151RX), Oil Rubbed Bronze (AE8155RX), Polished Nickel (AE8156RX), Brushed Brass (AE8157RX), Brushed Nickel (AE8158RX).
What replacement handles fit the AE8150RX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the AE815xRX diagram?
Kingston numbers the parts on this diagram (26 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Belknap AE815xRX in every finish
Belknap AE8150RX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Matte Black$1,017.22Matte Black
Belknap AE8151RX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Polished Chrome$851.47Polished Chrome
Belknap AE8155RX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Oil Rubbed Bronze$932.72Oil Rubbed Bronze
Belknap AE8156RX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Polished Nickel$1,013.97Polished Nickel
Belknap AE8157RX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Brushed Brass$1,013.97Brushed Brass
Belknap AE8158RX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Brushed Nickel$932.72Brushed Nickel
