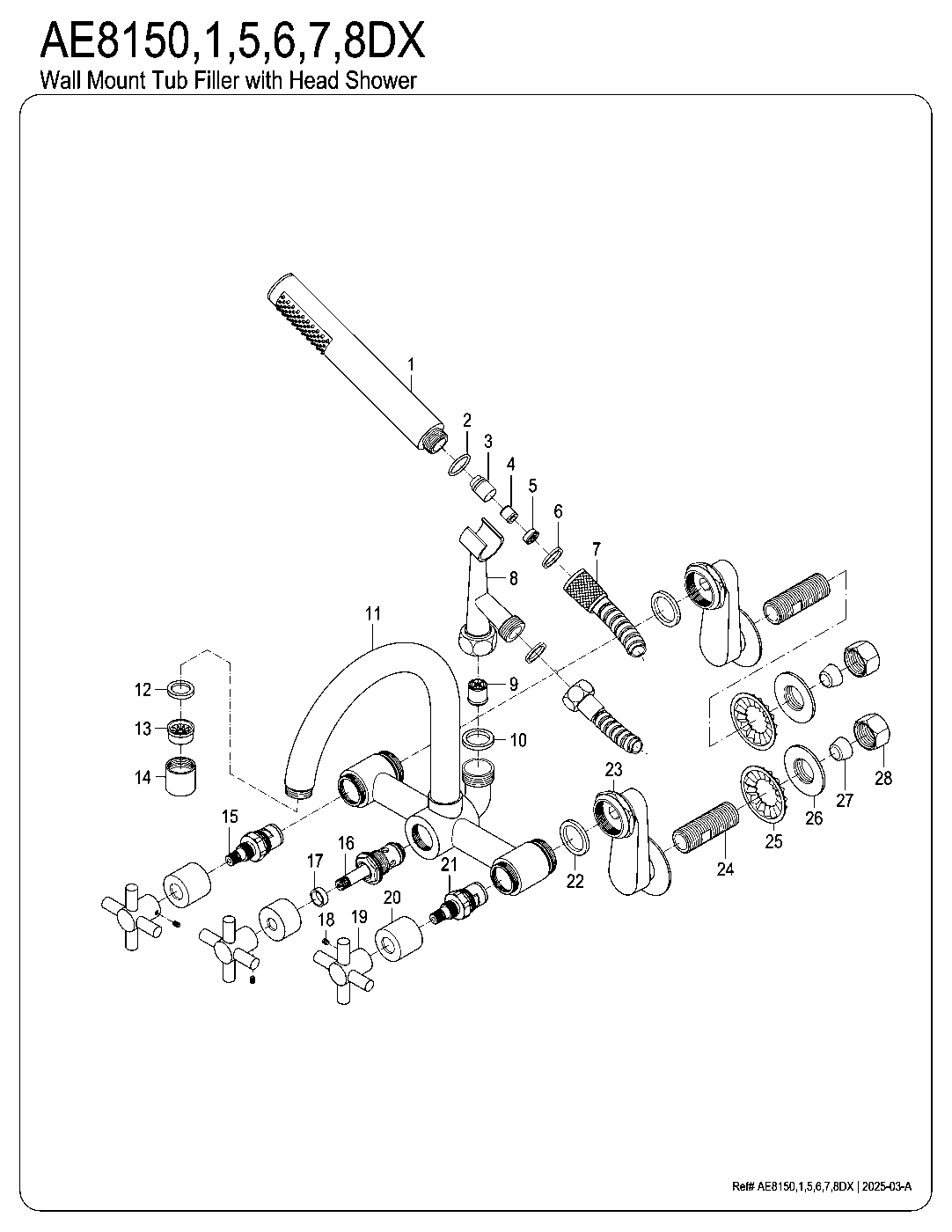

Concord AE8150DX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord AE8150DX parts questions
Which Kingston Brass models does this Concord parts diagram cover?
AE8150DX, AE8151DX, AE8155DX, AE8156DX, AE8157DX, AE8158DX. They are the same three-handle 2-hole tub wall mount clawfoot tub faucet with hand shower in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass AE8150DX come in?
Matte Black (AE8150DX), Polished Chrome (AE8151DX), Oil Rubbed Bronze (AE8155DX), Polished Nickel (AE8156DX), Brushed Brass (AE8157DX), Brushed Nickel (AE8158DX).
What replacement handles fit the AE8150DX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the AE815xDX diagram?
Kingston numbers the parts on this diagram (27 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord AE815xDX in every finish
Concord AE8150DX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Matte Black$945.72Matte Black
Concord AE8151DX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Polished Chrome$796.22Polished Chrome
Concord AE8155DX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Oil Rubbed Bronze$870.97Oil Rubbed Bronze
Concord AE8156DX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Polished Nickel$942.47Polished Nickel
Concord AE8157DX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Brushed Brass$942.47Brushed Brass
Concord AE8158DX Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Brushed Nickel$870.97Brushed Nickel
