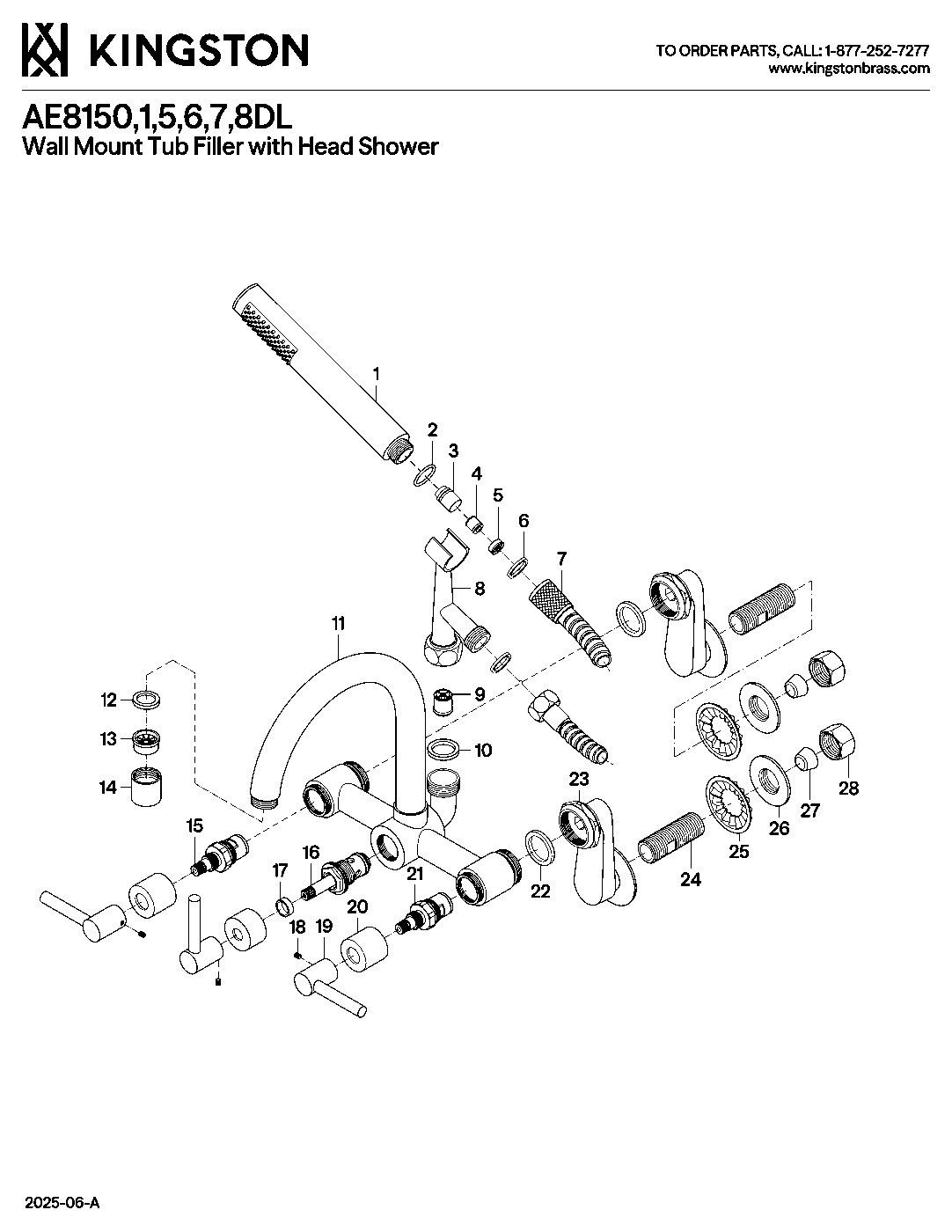

Concord AE8150DL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord AE8150DL parts questions
Which Kingston Brass models does this Concord parts diagram cover?
AE8150DL, AE8151DL, AE8155DL, AE8156DL, AE8157DL, AE8158DL. They are the same three-handle 2-hole tub wall mount clawfoot tub faucet with hand shower in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass AE8150DL come in?
Matte Black (AE8150DL), Polished Chrome (AE8151DL), Oil Rubbed Bronze (AE8155DL), Polished Nickel (AE8156DL), Brushed Brass (AE8157DL), Brushed Nickel (AE8158DL).
What replacement handles fit the AE8150DL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the AE815xDL diagram?
Kingston numbers the parts on this diagram (26 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord AE815xDL in every finish
Concord AE8150DL Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Matte Black$916.47Matte Black
Concord AE8151DL Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Polished Chrome$766.97Polished Chrome
Concord AE8155DL Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Oil Rubbed Bronze$841.72Oil Rubbed Bronze
Concord AE8156DL Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Polished Nickel$913.22Polished Nickel
Concord AE8157DL Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Brushed Brass$913.22Brushed Brass
Concord AE8158DL Three-Handle 2-Hole Tub Wall Mount Clawfoot Tub Faucet with Hand Shower, Brushed Nickel$841.72Brushed Nickel
