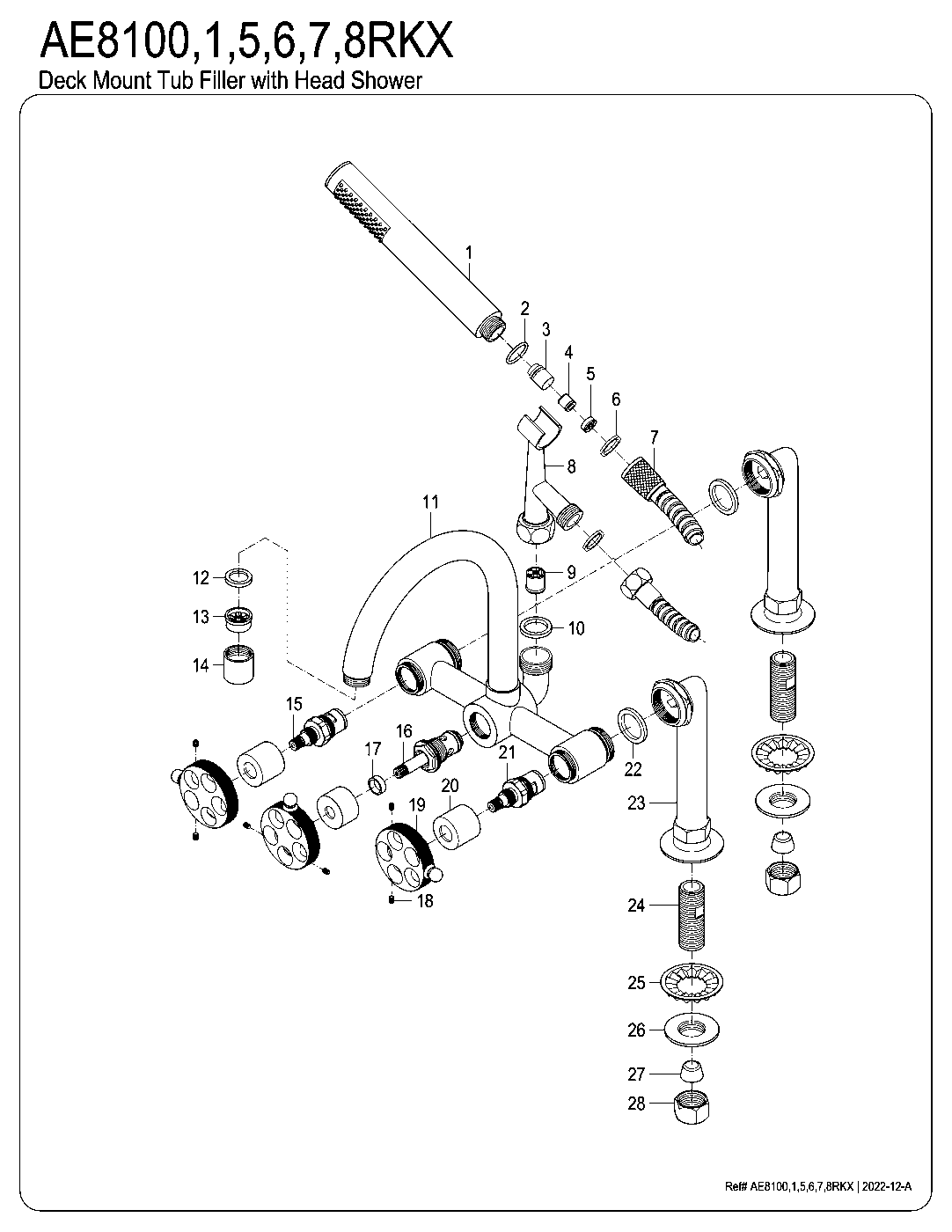

Webb AE8100RKX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramWebb AE8100RKX parts questions
Which Kingston Brass models does this Webb parts diagram cover?
AE8100RKX, AE8101RKX, AE8105RKX, AE8106RKX, AE8107RKX, AE8108RKX. They are the same three-handle 2-hole deck mount clawfoot tub faucet with knurled handle and hand shower in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass AE8100RKX come in?
Matte Black (AE8100RKX), Polished Chrome (AE8101RKX), Oil Rubbed Bronze (AE8105RKX), Polished Nickel (AE8106RKX), Brushed Brass (AE8107RKX), Brushed Nickel (AE8108RKX).
What replacement handles fit the AE8100RKX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the AE810xRKX diagram?
Kingston numbers the parts on this diagram (25 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Webb AE810xRKX in every finish
Webb AE8100RKX Three-Handle 2-Hole Deck Mount Clawfoot Tub Faucet with Knurled Handle and Hand Shower, Matte Black$890.47Matte Black
Webb AE8101RKX Three-Handle 2-Hole Deck Mount Clawfoot Tub Faucet with Knurled Handle and Hand Shower, Polished Chrome$747.47Polished Chrome
Webb AE8105RKX Three-Handle 2-Hole Deck Mount Clawfoot Tub Faucet with Knurled Handle and Hand Shower, Oil Rubbed Bronze$822.22Oil Rubbed Bronze
Webb AE8106RKX Three-Handle 2-Hole Deck Mount Clawfoot Tub Faucet with Knurled Handle and Hand Shower, Polished Nickel$890.47Polished Nickel
Webb AE8107RKX Three-Handle 2-Hole Deck Mount Clawfoot Tub Faucet with Knurled Handle and Hand Shower, Brushed Brass$890.47Brushed Brass
Webb AE8108RKX Three-Handle 2-Hole Deck Mount Clawfoot Tub Faucet with Knurled Handle and Hand Shower, Brushed Nickel$822.22Brushed Nickel
